BRZ Premium
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Vehicle Stability Control System
>>
Brake Control Brake Actuator Assembly
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View

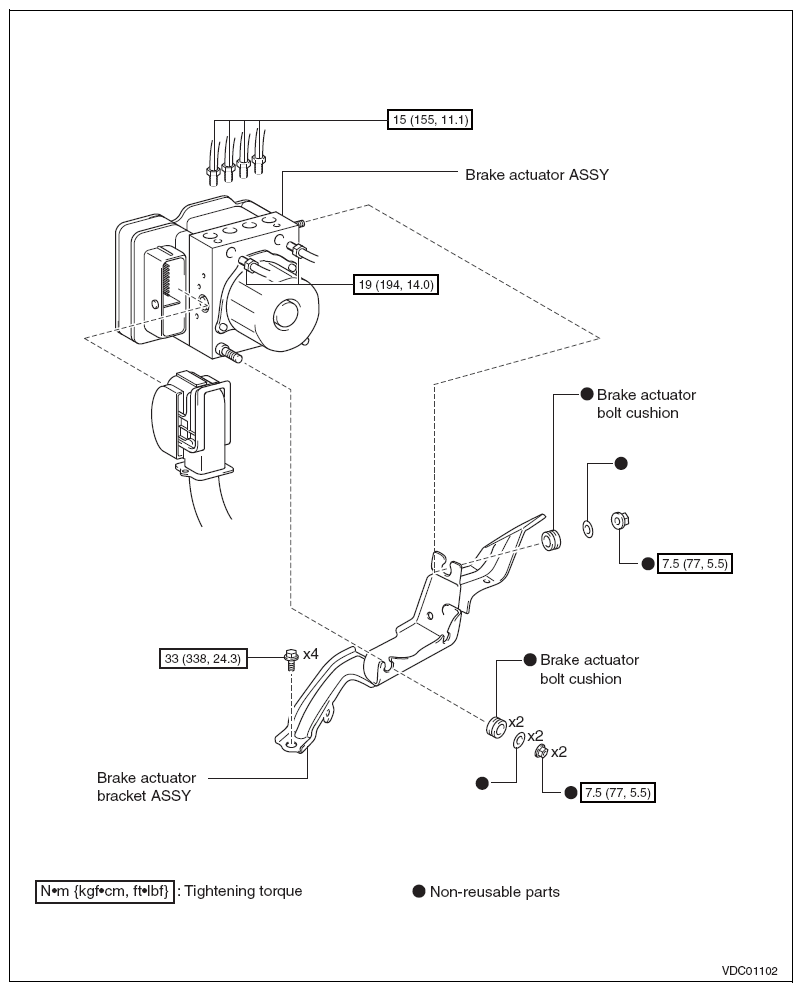

Fig 1: Exploded View Of Brake Actuator Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Brake Actuator Assembly With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
