Brake Control Brake Actuator Assembly: Installation

1. With 4 bolts, install the brake actuator Assembly W/bracket to the body.
   CAUTION: Do not bend or damage the brake tubes.

   Standard value: T=33N.m {338kgf.cm} {24.3ft.lbf}

2. Connect the vehicle wiring harness to the brake actuator Assembly.
3. Rotate the lock lever for the vehicle wiring harness downward, and engage the claw of the vehicle wiring harness connector to lock it.
   CAUTION:

   • Before connecting the vehicle wiring harness, make sure there is no foreign matter is on the connector surface.
   • After connecting the vehicle wiring harness, make sure that the lock lever is securely locked.

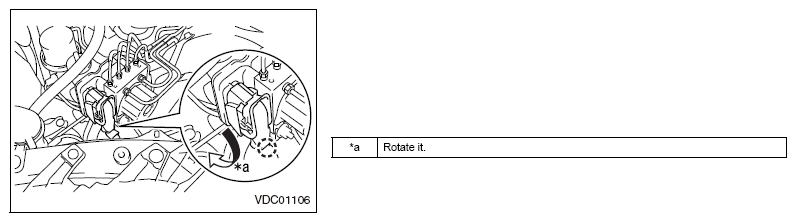

   Fig 1: Rotating Lock Lever

   Courtesy of SUBARU OF AMERICA, INC.

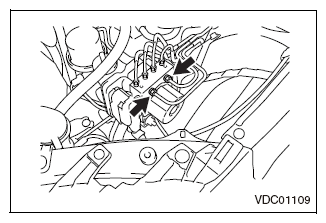

4. Using a flare-nut wrench, connect 2 brake tubes to the brake actuator Assembly.

   Standard value: T=19N.m {194kgf.cm} {14.0ft.lbf}

   Fig 2: Locating Brake Tubes

   Courtesy of SUBARU OF AMERICA, INC.

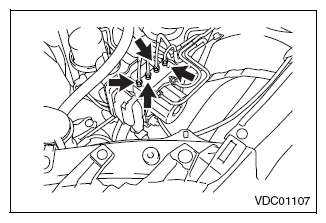

5. Using a flare-nut wrench, connect 4 brake tubes to the brake actuator Assembly.

   Standard value: T=15N.m {155kgf.cm} {11.1ft.lbf}

   Fig 3: Locating Brake Tubes

   Courtesy of SUBARU OF AMERICA, INC.
6. Attach the clamp to the wiring harness of the speed sensor FR LH.
7. Install the cooler pipe to the clamp.
8. Attach 2 harness clamps.

Standard value: T=120N.m {1224kgf.cm} {88.5ft.lbf}
