Check Accelerator Pedal Sensor Area (Method With Circuit Tester)

Remove the lower inner trim of passenger's side. < Refer to REMOVAL , Lower Inner Trim. >
Turn over the floor mat of passenger's seat.
Remove the protect cover.

Fig 1: Locating Protect Cover Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts and bolts which hold the ECM to the bracket.

Fig 2: Locating ECM To Bracket Holding Nuts And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Turn the ignition switch to ON. (engine OFF)

Measure the voltage between ECM connector terminals.

Main sensor side

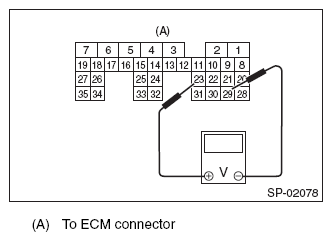

Fig 3: Measuring Voltage Between ECM Connector Terminals (Main Sensor Side)
Courtesy of SUBARU OF AMERICA, INC.
Sub sensor side

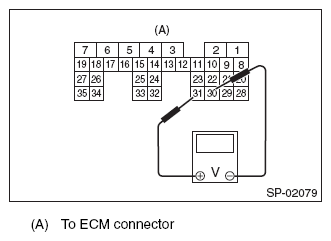

Fig 4: Measuring Voltage Between ECM Connector Terminals (Sub Sensor Side)
Courtesy of SUBARU OF AMERICA, INC.

Accelerator pedal sensor	Accelerator pedal	Terminal No.	Standard
Main	Not depressed (Full closed)	23 (+) and 29 (-)	0.4 - 1.0 V
Main	Depressed (Full opened)	23 (+) and 29 (-)	2.4 - 3.7 V
Sub	Not depressed (Full closed)	31 (+) and 30 (-)	0.3 - 1.1 V
Sub	Depressed (Full opened)	31 (+) and 30 (-)	2.3 - 3.8 V

After inspection, install the related parts in the reverse order of removal.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
