Fog Light Aiming

WARNING: This page is about a different car, the 2014 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Before checking the fog light assembly - front beam level, be sure of the following:
- The area around the fog light assembly - front has not sustained any scratches, damage or other type of deformation.
- Vehicle is parked on a level surface.
- The inflation pressure of tires is correct.
- Vehicle's fuel tank is fully filled.
Bounce the vehicle several times to normalize the suspension.
Make certain that someone is seated in the driver's seat.
Place the vehicle with the front end facing to the measurement panel.

Fig 1: Identifying Vehicle Center, Height Of Fog Light Center And Bulb Center Marking
Courtesy of SUBARU OF AMERICA, INC.

h mm (in) at 3 m (10 ft)

40 (1.58)
Adjust the fog light assembly - front beam.
1. Remove the screw and clips, and turn over the front side of the mud guard - front.

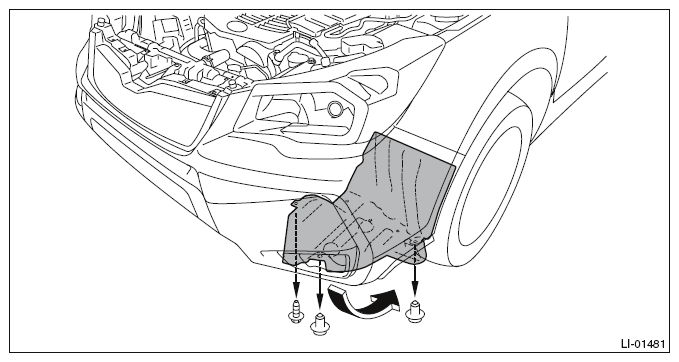

  Fig 2: Removing Front Fog Light Assembly Screw And Clips
  Courtesy of SUBARU OF AMERICA, INC.
2. Adjust the beam direction by turning the aiming screw from the bottom of the bumper face - front.

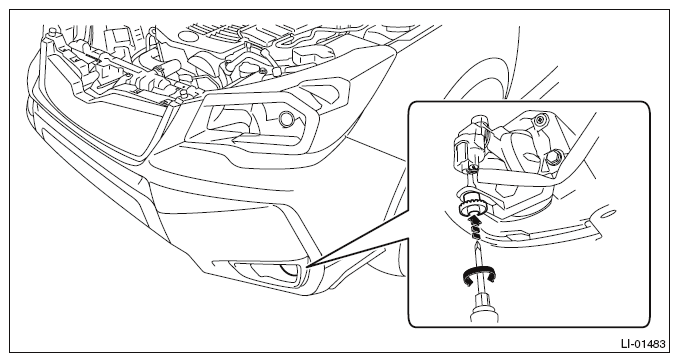

  Fig 3: Adjusting Beam Direction By Turning Aiming Screw
  Courtesy of SUBARU OF AMERICA, INC.
