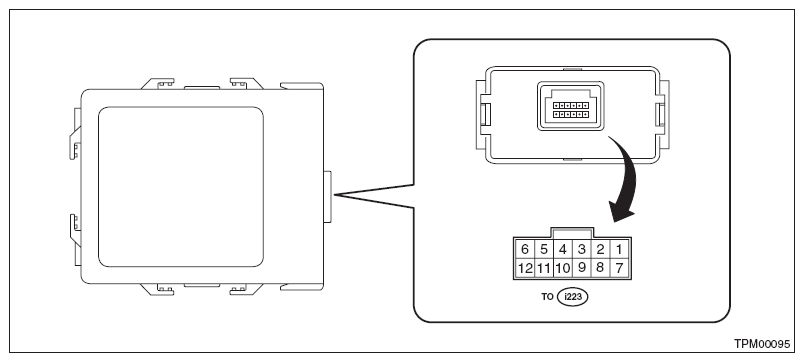

Keyless Entry Control Module
| Contents | Terminal No. | Measuring condition |
|---|---|---|
| - | 1 | - |
| Tire pressure warning light output | 2 | Illuminate when malfunction occurs, or tire pressure decreases |
| Speed sensor signal | 3 | While driving (Pulse signal) |
| Ignition power supply | 4 | IG switch ON (Battery voltage) |
| GND | 5 | 0 V (Always) |
| Battery power supply | 6 | Battery voltage (Always) |
| - | 7 | - |
| - | 8 | - |
| - | 9 | - |
| - | 10 | - |
| Body integrated unit | 11 | Battery voltage cannot be measured because of digital signal. |
| Select monitor communication | 12 | Serial communication |
