BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Starter
>>
Entry Start System Entry System (Keyless Entry)
>>
Entry & Start System (Entry Function)
>>
Neither Smart Lock Nor Smart Unlock Operation Works On Any Of The Doors (Wireless Function Does Not Work Either)
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

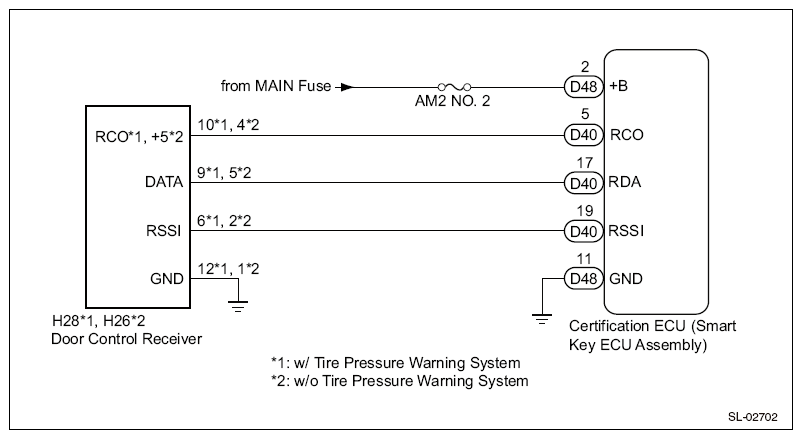

Fig 1: Door Control Receiver Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
