Home >> Subaru >> 2015 >> BRZ Limited, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Starter >> Entry Start System Entry System (Keyless Entry) >> Entry & Start System (Entry Function) >> The Smart Key Lockout Protection Function For The Trunk Does Not Work (Trunk Does Not Open) >> Circuit figure
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Circuit figure

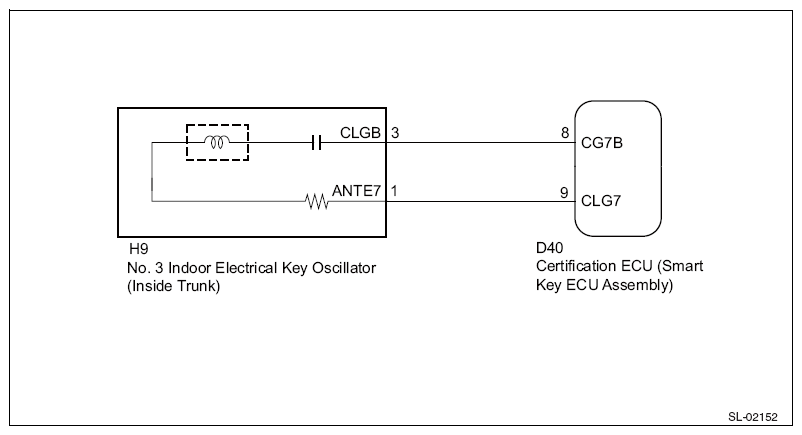

Fig 1: Indoor Electrical Key Antenna Assembly No. 3 (Trunk Interior Antenna) Circuit Diagram
G08553082Courtesy of SUBARU OF AMERICA, INC.
