Test drive

Perform test drive to check if the DTC recurs.

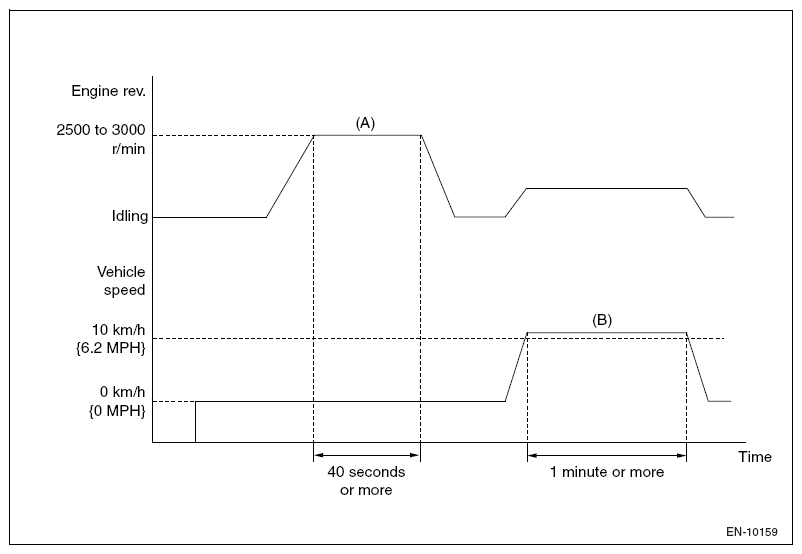

Fig 1: Confirmation Driving Pattern

Courtesy of SUBARU OF AMERICA, INC.

1. Connect the SSM3 to the DLC3.
2. Turn the ignition switch to ON.
3. Turn on the SSM3.
4. Follow the SSM3 on-screen instructions to clear the DTCs. (Refer to CHECKING/CLEARING DTC )
5. Turn the ignition switch to OFF, and wait for 30 seconds.
6. Turn the ignition switch to ON.
7. Turn on the SSM3.
8. Start the engine and let it warm up until the engine coolant temperature stabilizes. (at 75°C {167°F} or more).
9. Keep the engine speed between 2500 and 3000 r/min for 40 seconds or more. (A)
10. Drive at 10km/h {6.25 MPH} or more for 1 minutes or more. (B)
    WARNING: When performing this driving test, always observe the applicable traffic laws such as the speed limit.
11. Stop the vehicle.
12. Follow the SSM3 on-screen instructions to check the DTC. (Refer to CHECKING/CLEARING DTC )
