Outer Mirror Assembly: Assembly

  1. Engage the claws into the hole and install the cover - cap outer mirror.

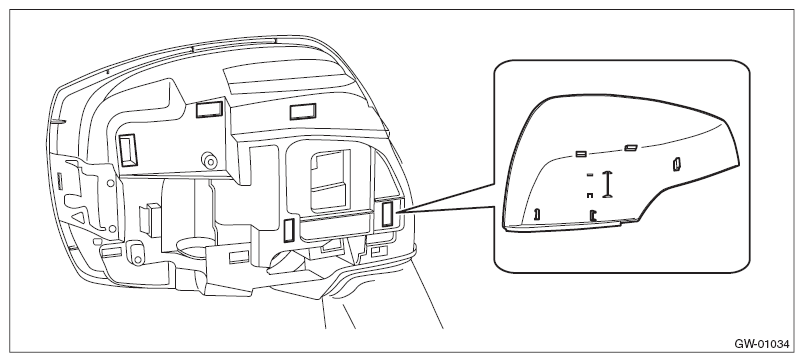

    Fig 1: Locating Cap Outer Mirror Cover Claws
    G08315154Courtesy of SUBARU OF AMERICA, INC.
  2. Engage the claws into the hole and install the cover - cap outer mirror lower.

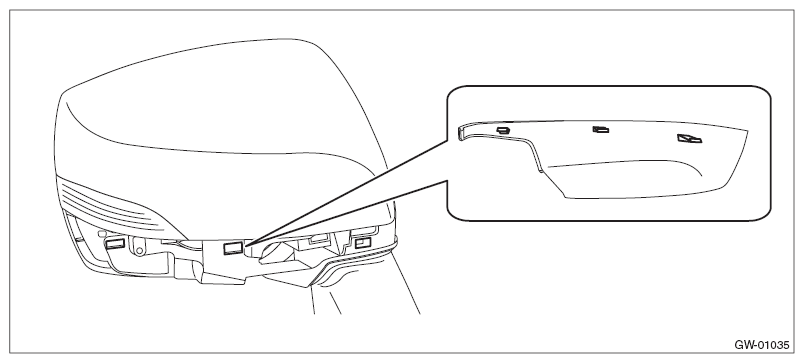

    Fig 2: Locating Outer Mirror Cover Claws And Hole
    G08315155Courtesy of SUBARU OF AMERICA, INC.
  3. Check that all the claws are securely engaged.
  4. Install the mirror - repair in the reverse order of removal.
    CAUTION: Be sure to insert the connector and clips securely.
