Outer Mirror Assembly: Disassembly

CAUTION:

When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.
When installing the mirror - repair, insert the connector and clip securely.

Operate the remote control mirror switch to face the mirror - repair upward.
Disconnect the ground cable from battery.
Remove the mirror - repair.

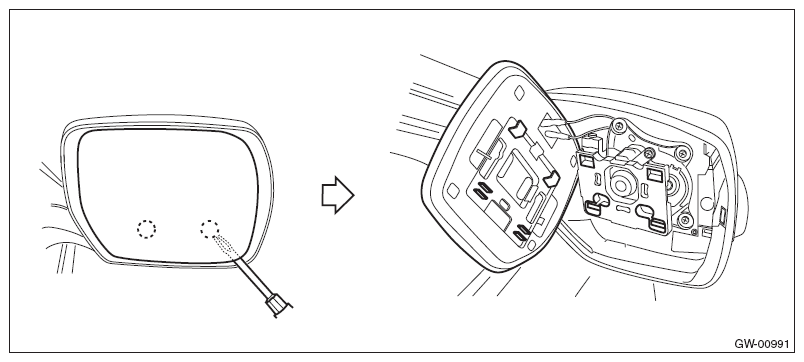

1. Using a flat tip screwdriver, release the clip, and slide the mirror - repair downward to remove.

  Fig 1: Removing Mirror Clip
  Courtesy of SUBARU OF AMERICA, INC.

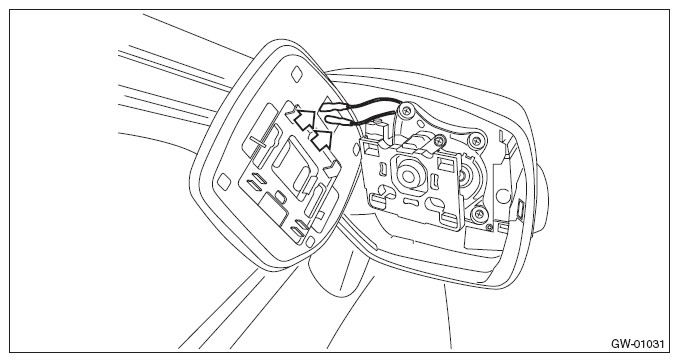

2. Disconnect the mirror heater connector. (Model with mirror heater)

  Fig 2: Locating Mirror Heater Connector
  Courtesy of SUBARU OF AMERICA, INC.

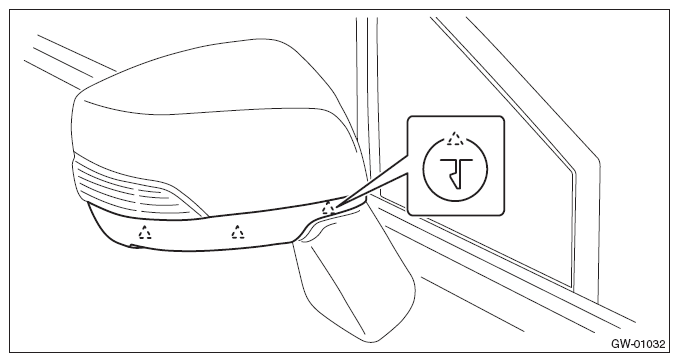

Release the claws, and then remove the cover - cap outer mirror lower.

Fig 3: Identifying Outer Mirror Lower Cover Claws
Courtesy of SUBARU OF AMERICA, INC.

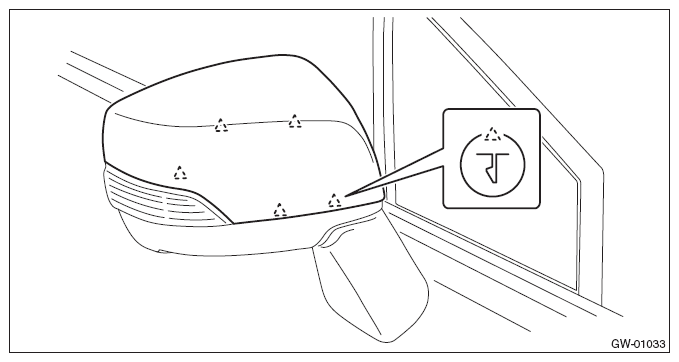

Release the claws, and then remove the cover - cap outer mirror.
CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

Fig 4: Identifying Outer Mirror Lower Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
