Engine Coolant Temperature Sensor: Removal

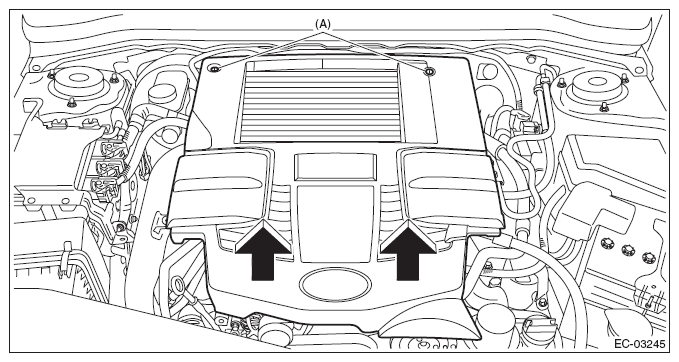

  1. Remove the clip (A), lift the front of the collector cover in the direction of arrow, and then remove the collector cover.
    Fig 1: Removing Front Collector Cover
    G09479721Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground cable from battery.
  3. Drain engine coolant. < Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
  4. Disconnect the connector (A) from the engine coolant temperature sensor, and remove the engine coolant temperature sensor.
    Fig 2: Locating Engine Coolant Temperature Sensor Connector
    G09479722Courtesy of SUBARU OF AMERICA, INC.
