Fuel Sub Level Sensor: Installation

Install in the reverse order of removal while being careful of the following.

• Make sure the sealing portion is free from fuel or foreign matter before installation.
• Align protrusion (A) of the gasket to the position shown in the figure.
• Align protrusion (B) of the fuel sub level sensor to the cutout in the fuel sub level sensor upper plate.
• Tighten the nuts and bolts to the specified torque in the order as shown in the figure.
• After tightening, install the rubber cap (C) at the position shown in the figure.
  NOTE:

  • Use a new gasket.
  • Do not forget to install rubber cap (C).

  Tightening torque:

  4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

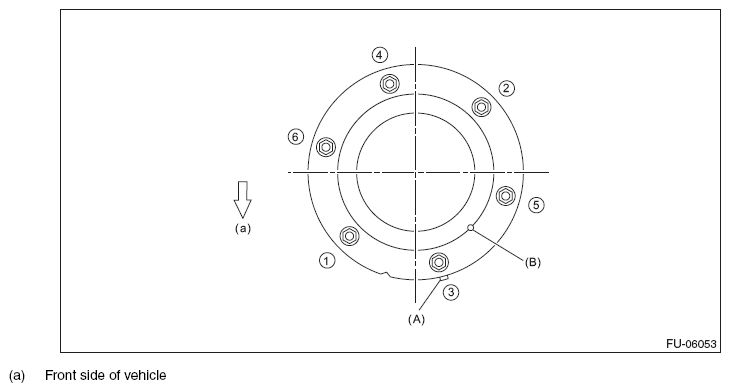

  Fig 1: Identifying Mounting Bolts Tightening Sequence

  Courtesy of SUBARU OF AMERICA, INC.
  Fig 2: Identifying Rubber Cap

  Courtesy of SUBARU OF AMERICA, INC.

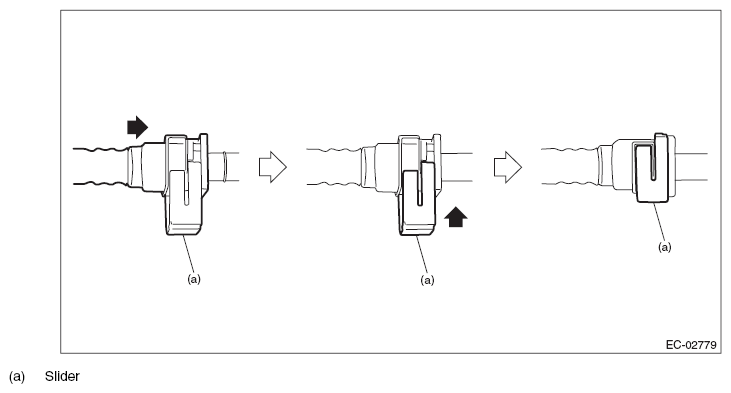

• Connect the quick connector as shown in the figure.
  CAUTION:

  • Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
  • When connecting the quick connector, make sure to insert the pipe all the way in before locking the slider.
  • When it is difficult to lock the slider, check that the pipe is fully inserted.
  • Make sure that the quick connector is securely connected.
  Fig 3: Checking Quick Connector Securely Connected

  Courtesy of SUBARU OF AMERICA, INC.
