Mass Air Flow and Intake Air Temperature Sensor: Removal

  1. Disconnect the ground cable from battery.
  2. Disconnect the connector (A) from the mass air flow and intake air temperature sensor, and remove the mass air flow and intake air temperature sensor.

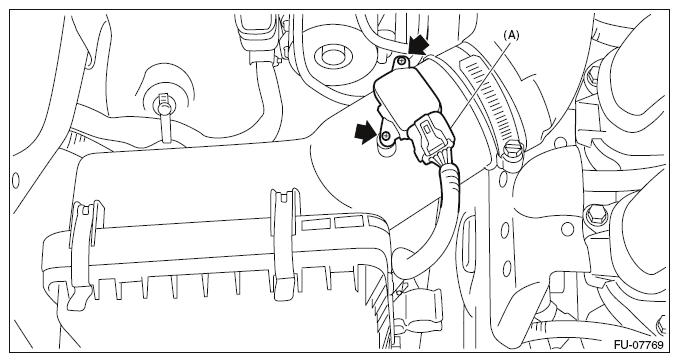

    Fig 1: Locating Mass Air Flow And Intake Air Temperature Sensor Connector
    G09475546Courtesy of SUBARU OF AMERICA, INC.
