Reprogramming File Availability To Improve Audio Unit Performance (15-188-15R)

Publication date: 2016-05-09
Reference number: 15-188-15R
Supersedes refnos: 15-188-15

REPROGRAMMING FILE AVAILABILITY TO IMPROVE AUDIO UNIT PERFORMANCE

TECHNICAL SERVICE BULLETIN

Reference Number(s): 15-188-15R, Date of Issue: May 09, 2016

SUBARU:

2015 Legacy and Outback

Superceded Bulletin(s): 15-188-15, Date of Issue: September 24, 2015

APPLICABILITY

2015MY Legacy and Outback Models Equipped with 6.2" Clarion Display Audio

INTRODUCTION

This bulletin announces the reprogramming file availability and installation procedure to address the following customer concerns when operating the Clarion 6.2" Display Audio unit:

Concern: Slow start-up time (approximately 18 seconds) for the FM menu screen to display
Improvement: Reduced start-up time to 12 seconds.
Concern: Delay (approximately 14 seconds) before guidelines on back-up camera display appear
Improvement: Reduced delay to 12 seconds.
Concern: Back-up camera display freezes (for 2 to 10 seconds) when shifting into reverse after switching the ignition on
Improvement: Modified software to eliminate freezing of back-up camera display.
Concern: Delay (up to 10 seconds) before back-up camera display is shown after shifting into Reverse when a USB memory device and/or an iPhone is connected
Improvement: Reduced delay to 2 seconds.

The procedure will involve downloading the applicable update file from Subarunet then loading it onto a flash drive for installation.

PRODUCTION CHANGE INFORMATION

New audio units with updated software were incorporated into production per the table below:

MODEL	STARTING VIN	CHANGE DATE
Legacy	F3020224	October, 2014
Outback	F3249073	October, 2014

APPLICABLE CLARION AUDIO UNITS

CB604UL and CB624UL

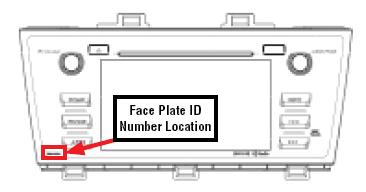

The audio unit model number is displayed on the lower left of the faceplate as shown below.

SERVICE PROCEDURE/INFORMATION

IMPORTANT: Due to additional updates to the operating software used by these Clarion Display Audio (DA) units released since TSB 15-188-15R was published, this Service Procedure has been consolidated with TSB 15-199-16 . The applicable symptom information has been left in place as a reference. Please use TSB 15-199-16 for the latest symptom information and software updating Service Procedure.
