Electrical Specification

NOTE: Measure after warming up.

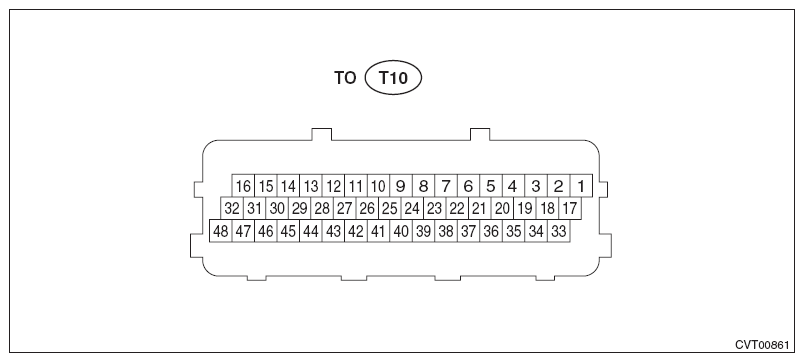

Item Terminal No. Measuring condition Measurement value Resistance between terminal and chassis ground Remarks
Backup power supply 34 - 10 - 13 V -
Ignition power supply 41 - 10 - 13 V -
Main power supply 8 - 10 - 13 V -
Main power supply 24 - 10 - 13 V -
Main power supply 40 - 10 - 13 V -
Manual mode switch 20 Manual mode switch ON Less than 1 V -
Manual mode switch OFF 8 V or more -
Manual mode UP switch 19 Manual mode UP switch ON Less than 1 V -
Manual mode UP switch OFF 8 V or more -
Manual mode DOWN switch 18 Manual mode DOWN switch ON Less than 1 V -
Manual mode DOWN switch OFF 8 V or more -
Stop light switch 29 Stop light switch ON 8 V or more -
Stop light switch OFF Less than 1 V -
P range switch 38 P range Less than 1 V -
Except for P range 8 V or more -
R range switch 37 R range Less than 1 V -
Except for R range 8 V or more -
N range switch 36 N range Less than 1 V -
Except for N range 8 V or more -
D range switch 35 D range Less than 1 V -
Except for D range 8 V or more -
ATF temperature sensor 6 ATF temperature at 20°C (68°F) Approx. 2.5 V Approx. 2.5 kΩ
ATF temperature at 80°C (176°F) Approx. 0.7 V Approx. 330 Ω
ATF temperature sensor GND 1 Always Approx. 0 V -
Secondary pressure sensor power supply output 33 Ignition switch ON 5 V -
Secondary pressure sensor 5 Ignition switch ON, engine OFF Approx. 0.5 V (0 MPa) - Value increases with increase of engine load. (0.5 - 4.5 V)
Ignition switch ON, engine ON Approx. 1.0 V (1.0 MPa) -
Secondary pressure sensor GND 2 Always Approx. 0 V -
Primary speed sensor 14 While driving 0 or 5 V - Refer to the (SENSOR)
Secondary speed sensor 13 While driving 0 or 5 V - Refer to the (SENSOR)
Turbine speed sensor 12 Engine ON, "P" or "N" range 0 or 5 V - Refer to the (SENSOR)
F&R solenoid 16 Engine ON Refer to the (SOLENOID (1))  Approx. 4 - 6 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Secondary solenoid 32 Engine ON Refer to the (SOLENOID (2))  Approx. 5 - 7 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Primary UP solenoid 47 Engine ON, while UP shifting Refer to the (SOLENOID (3))  Approx. 10 - 13.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Primary DOWN solenoid 30 Engine ON, while DOWN shifting Refer to the (SOLENOID (4))  Approx. 10 - 13.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Lock-up duty solenoid 15 Lock-up ON Refer to the (SOLENOID (5))  Approx. 10 - 13.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
AWD solenoid 48 Engine ON, "P" or "N" range Refer to the (SOLENOID (6))  Approx. 2 - 4.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Engine ON, "D" range, brake ON Refer to the (SOLENOID (7))
CAN communication line (+) 43 - - -
CAN communication line (-) 44 - - -
GND 26 Always Approx. 0 V -
GND 42 Always Approx. 0 V -
NOTE: Measure after warming up.
Item Terminal No. Measuring condition Measurement value Resistance between terminal and chassis ground Remarks
Backup power supply 34 - 10 - 13 V -
Ignition power supply 41 - 10 - 13 V -
Main power supply 8 - 10 - 13 V -
Main power supply 24 - 10 - 13 V -
Main power supply 40 - 10 - 13 V -
Manual mode switch 20 Manual mode switch ON Less than 1 V -
Manual mode switch OFF 8 V or more -
Manual mode UP switch 19 Manual mode UP switch ON Less than 1 V -
Manual mode UP switch OFF 8 V or more -
Manual mode DOWN switch 18 Manual mode DOWN switch ON Less than 1 V -
Manual mode DOWN switch OFF 8 V or more -
Stop light switch 29 Stop light switch ON 8 V or more -
Stop light switch OFF Less than 1 V -
P range switch 38 P range Less than 1 V -
Except for P range 8 V or more -
R range switch 37 R range Less than 1 V -
Except for R range 8 V or more -
N range switch 36 N range Less than 1 V -
Except for N range 8 V or more -
D range switch 35 D range Less than 1 V -
Except for D range 8 V or more -
ATF temperature sensor 6 ATF temperature at 20°C (68°F) Approx. 2.6 V Approx. 2.6 kΩ
ATF temperature at 80°C (176°F) Approx. 0.7 V Approx. 370 Ω
ATF temperature sensor GND 1 Always Approx. 0 V -
Secondary pressure sensor power supply output 33 Ignition switch ON 5 V -
Secondary pressure sensor 5 Ignition switch ON, engine OFF Approx. 0.5 V (0 MPa) - Value increases with increase of engine load. (0.5 - 4.5 V)
Ignition switch ON, engine ON Approx. 1.0 V (1.0 MPa) -
Secondary pressure sensor GND 2 Always Approx. 0 V -
Primary speed sensor 14 While driving 0 or 5 V - Refer to the (SENSOR)
Secondary speed sensor 13 While driving 0 or 5 V - Refer to the (SENSOR)
Front wheel speed sensor 12 Engine ON, "P" or "N" range 0 or 5 V - Refer to the (SENSOR)
F&R solenoid 16 Engine ON Refer to the (SOLENOID (1))  Approx. 4 - 6 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Secondary solenoid 32 Engine ON Refer to the (SOLENOID (2))  Approx. 5 - 7 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Primary UP solenoid 47 Engine ON, while UP shifting Refer to the (SOLENOID (3))  Approx. 10 - 13.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Primary DOWN solenoid 30 Engine ON, while DOWN shifting Refer to the (SOLENOID (4))  Approx. 10 - 13.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Lock-up duty solenoid 15 Lock-up ON Refer to the (SOLENOID (5))  Approx. 10 - 13.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
AWD solenoid 48 Engine ON, "P" or "N" range Refer to the (SOLENOID (6))  Approx. 2 - 4.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Engine ON, "D" range, brake ON Refer to the (SOLENOID (7))
Lock-up ON/OFF solenoid 31 With lock-up OFF Less than 1 V Approx. 13 - 18.5 Ω Resistance value at 20°C (68°F). Value is higher as the temperature increase.
Lock-up ON Battery voltage or higher
CAN communication line (+) 43 - - -
CAN communication line (-) 44 - - -
GND 26 Always Approx. 0 V -
GND 42 Always Approx. 0 V -
