Multi-Function Display Switch

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Pull out the panel center assembly. <Ref. to REMOVAL , Center Console.>
  3. Remove the switch - multi-function display.
    1. Reach through the clearance (a) between the instrument panel assembly and the panel center assembly, release the claws, and push out the switch - multi-function display.
    2. Disconnect the connector and remove the switch - multi-function display.

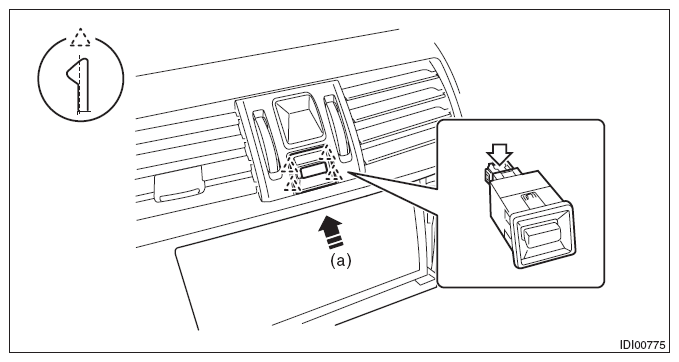

      Fig 1: Pushing Multi-Function Display Switch
      G10270902Courtesy of SUBARU OF AMERICA, INC.
