Battery Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  2. Disconnect the connector (A) from the battery sensor, and remove the battery sensor.

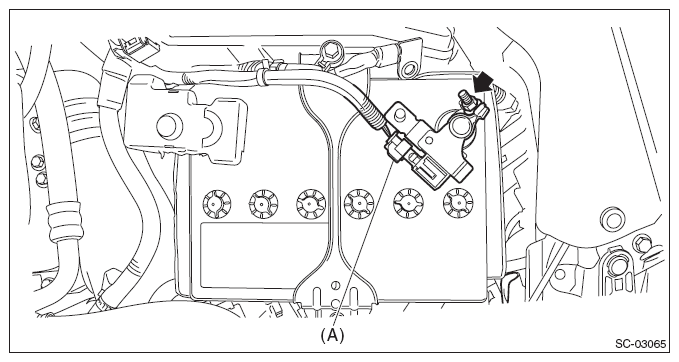

    Fig 1: Identifying Battery Sensor Connector
    G10267469Courtesy of SUBARU OF AMERICA, INC.
