Starting System & Charging System (Except STI): Generator: Removal

Remove the collector cover. <Ref. to REMOVAL , Collector Cover.>
Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
Remove the brake booster vacuum pump. <Ref. to REMOVAL , Brake Vacuum Pump.>
Remove the V-belts. <Ref. to V-BELT , REMOVAL, V-belt.>
Remove the collector cover bracket.

Fig 1: Locating Collector Cover Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) and terminal (B) from the generator.

Fig 2: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator from the generator bracket.

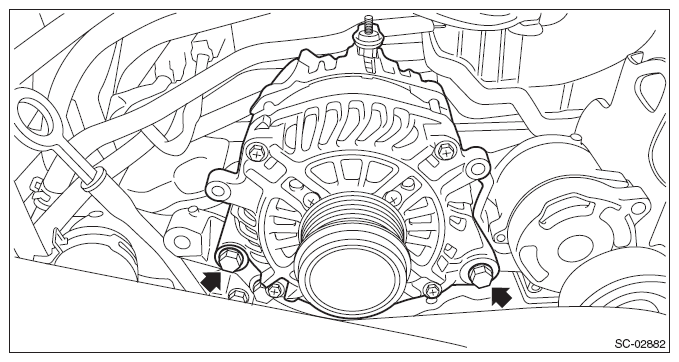

Fig 3: Locating Generator Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belt tensioner. <Ref. to V-BELT TENSIONER ASSEMBLY , REMOVAL, V-belt.>
Remove the generator bracket from the engine.

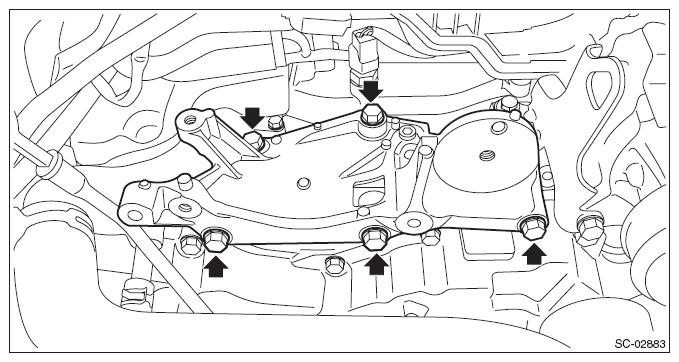

Fig 4: Locating Engine Generator Bracket
Courtesy of SUBARU OF AMERICA, INC.
