Starting System & Charging System (Except STI): Starter: Installation

Install in the reverse order of removal.

Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)

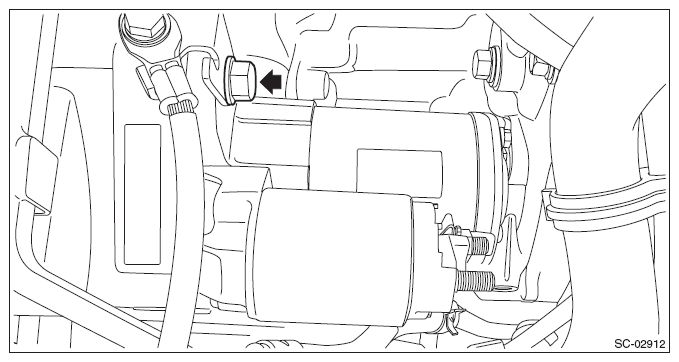

Fig 1: Locating Starter Bolt

Courtesy of SUBARU OF AMERICA, INC.

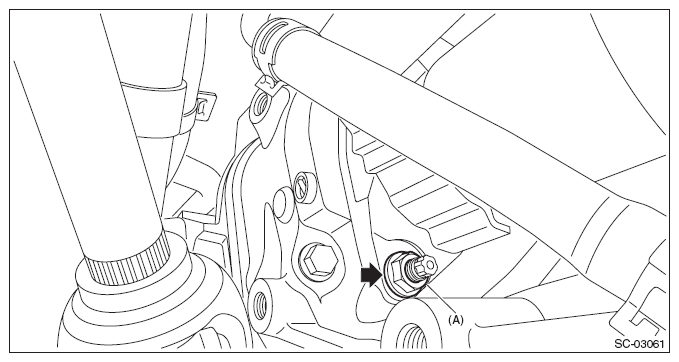

NOTE: For the MT model, a bolt is used to the location (A).

Fig 2: Locating Starter Bolt - MT Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

Fig 3: Locating Starter Bolt - MT Model

Courtesy of SUBARU OF AMERICA, INC.
