Engine Controls (Diagnostics) (H4DOTC) (Except STI): Electrical Component Location: Location: Sensor

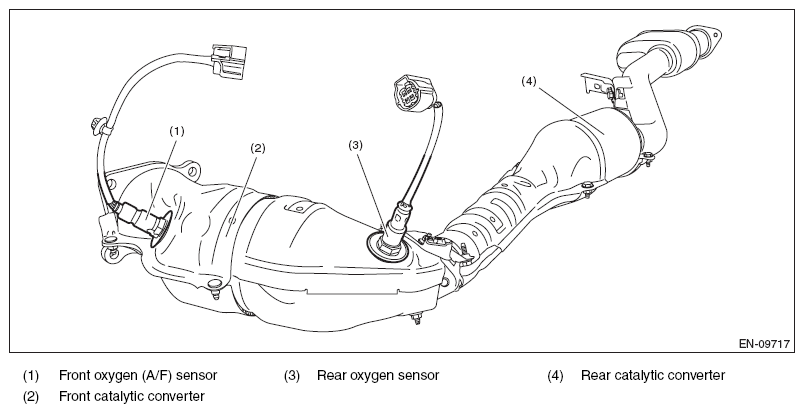

Fig 1: Sensor Component Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

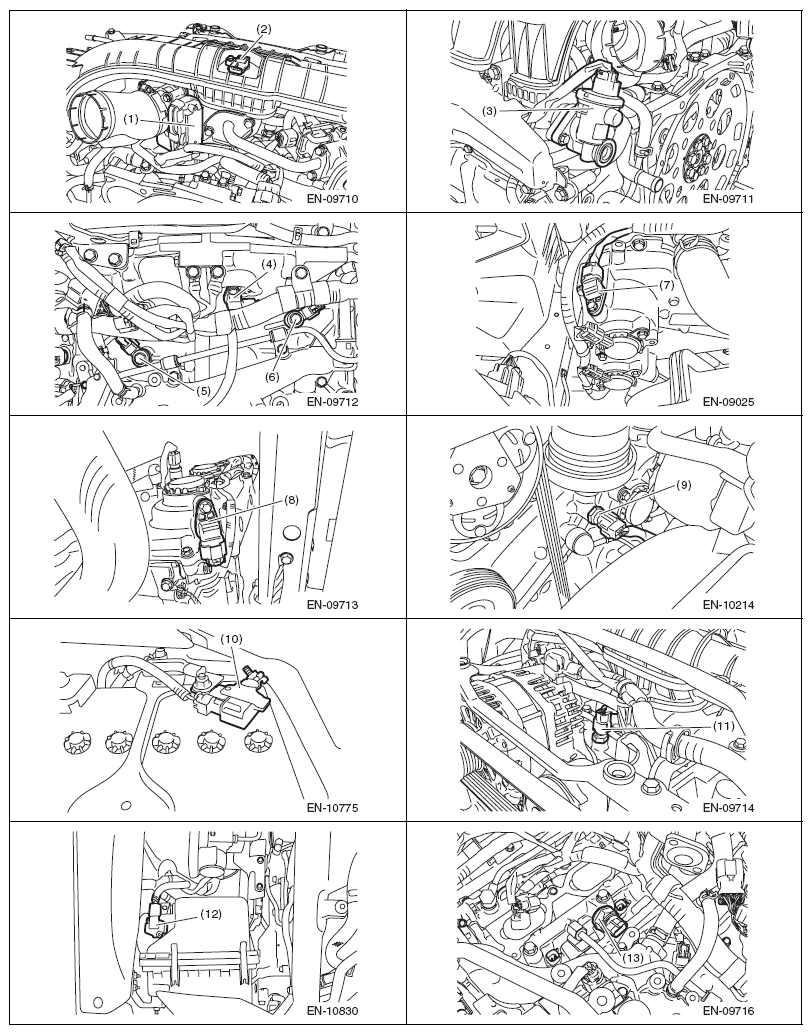

Fig 2: Sensor Component Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

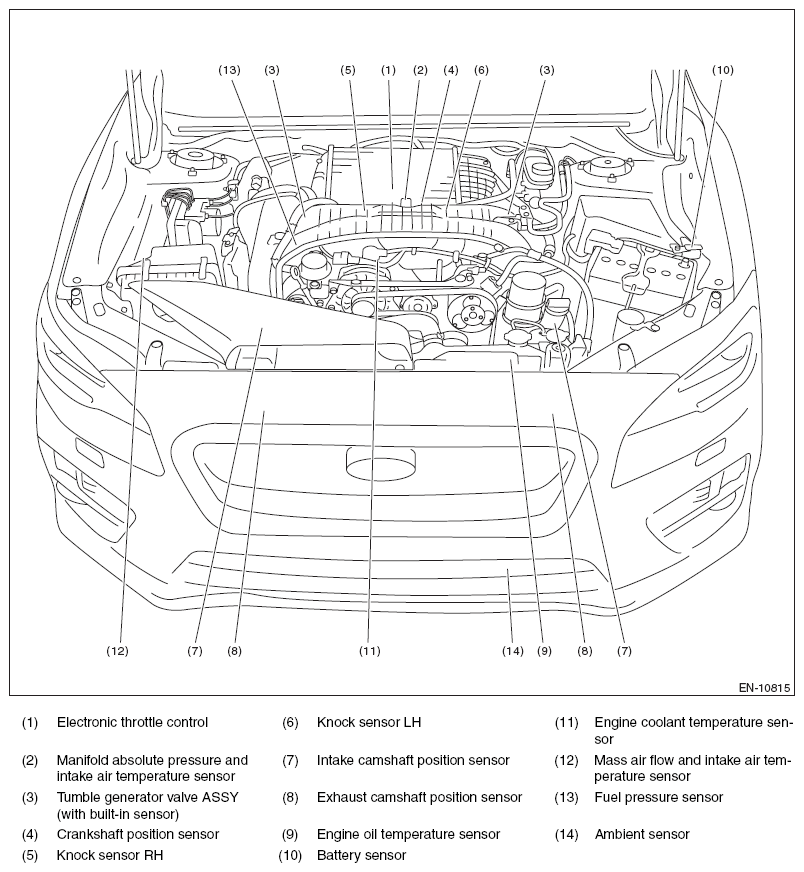

Fig 3: Sensor Component Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

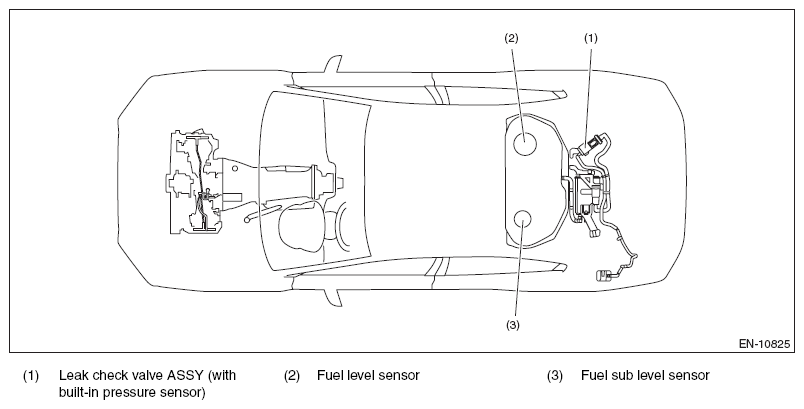

Fig 4: Sensor Component Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Sensor Component Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Sensor Component Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
