Thrust Angle
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on a level surface.
- Move the vehicle 3 - 4 meters (10 - 13 feet) straight forward.

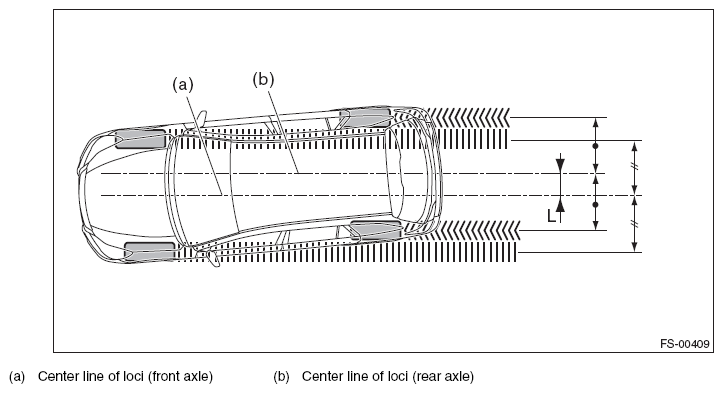

- Draw the center of loci for both the front and rear axles.
- Measure distance "L" between the center lines of the axle loci.
Thrust angle: Inspection value
0°±30'
Less than 30' when "L" is 23 mm (0.9 in) or less
