SI-DRIVE (SUBARU Intelligent Drive) Selector: Inspection
- Check that the multi select switch does not have deformation, cracks, or damage.

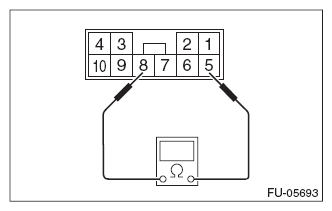

- Check the resistance between the terminals at the SI-DRIVE selector.
Courtesy of SUBARU OF AMERICA, INC.
| Switch position |
Terminal No. |
Standard |
| Sport (When turning the SI-DRIVE selector to the left) |
5 and 8 |
Less than 1 Ω |
| Intelligent (When pressing the SI-DRIVE selector) |
1±0.05 kΩ |
| Sport Sharp (When turning the SI-DRIVE selector to the right) |
3.67±0.1835 kΩ |
