Intake Manifold: Disassembly

Remove the throttle body. < Ref. to REMOVAL , Throttle Body.>
Remove the purge control solenoid valve. < Ref. to REMOVAL , Purge Control Solenoid Valve.>
Remove the manifold absolute pressure sensor. < Ref. to REMOVAL , Manifold Absolute Pressure Sensor.>
Remove the EGR pipe from intake manifold.

Fig 1: Locating EGR Pipe To Intake Manifold Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel delivery pipe from intake manifold.
NOTE: Disconnect the quick connector as shown in the figure.

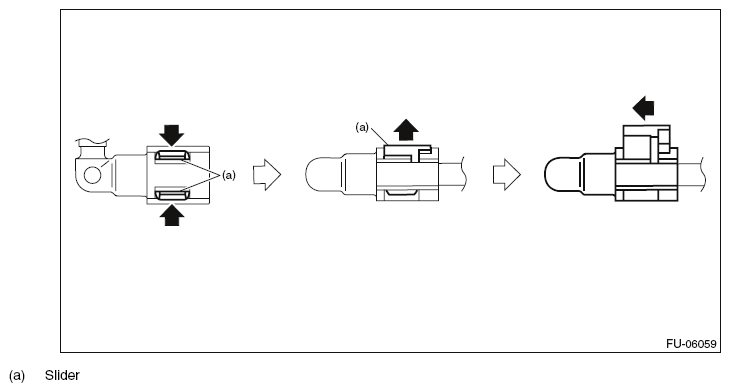

Fig 2: Disconnecting Quick Connector
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Locating Fuel Delivery Pipe Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel pipe and cap from the intake manifold.

Fig 4: Removing Fuel Pipe And Cap From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
