DTC P2127: Throttle/Pedal Position Sensor/Switch "E" Circuit Low Input: Wiring Diagram

Engine electrical system < Ref. to ENGINE ELECTRICAL SYSTEM .>

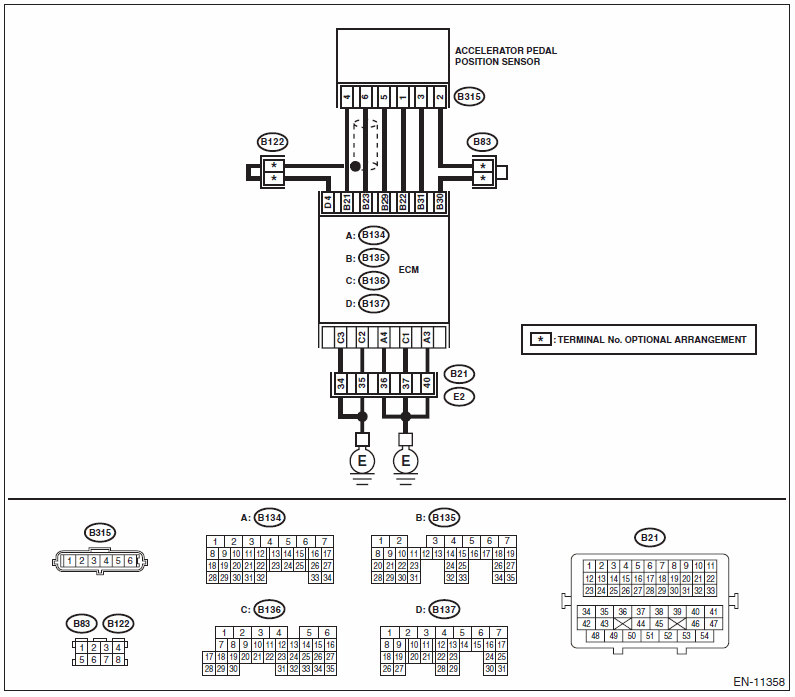

Fig 1: Throttle/Pedal Position Sensor/Switch (E) - Low Input - Circuit Diagram

G00404605

Courtesy of SUBARU OF AMERICA, INC.

DTC PROCEDURE

Step	Check	Yes	No
1 CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR CONNECTOR. Turn the ignition switch to OFF. Disconnect the connectors from ECM and accelerator pedal position sensor. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B135) No. 22 - Chassis ground: (B135) No. 31 - Chassis ground:	Is the resistance 1 MΩ or more?	Go to step 2 .	Repair the short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector.
2 CHECK SHORT CIRCUIT INSIDE THE ECM. Connect the connector to ECM. Measure the resistance between accelerator pedal position sensor connector and chassis ground. Connector & terminal (B315) No. 3 - Chassis ground:	Is the resistance 1 MΩ or more?	Replace the accelerator pedal. < Ref. to ACCELERATOR PEDAL .>	Repair the short circuit to ground in harness between ECM connector and accelerator pedal position sensor connector. Replace the ECM if defective. < Ref. to ENGINE CONTROL MODULE (ECM) .>
