Electrical Specification: Notes

Fig 1: Engine Control Module Connector Terminal Identification (1 Of 5)
G05334606Courtesy of SUBARU OF AMERICA, INC.

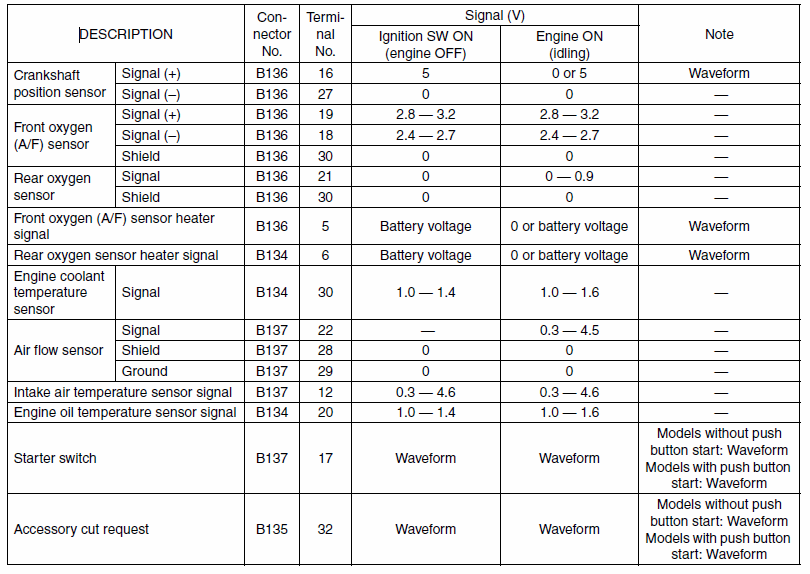

Fig 2: Engine Control Module Connector Terminal Identification (2 Of 5)
G00531243Courtesy of SUBARU OF AMERICA, INC.

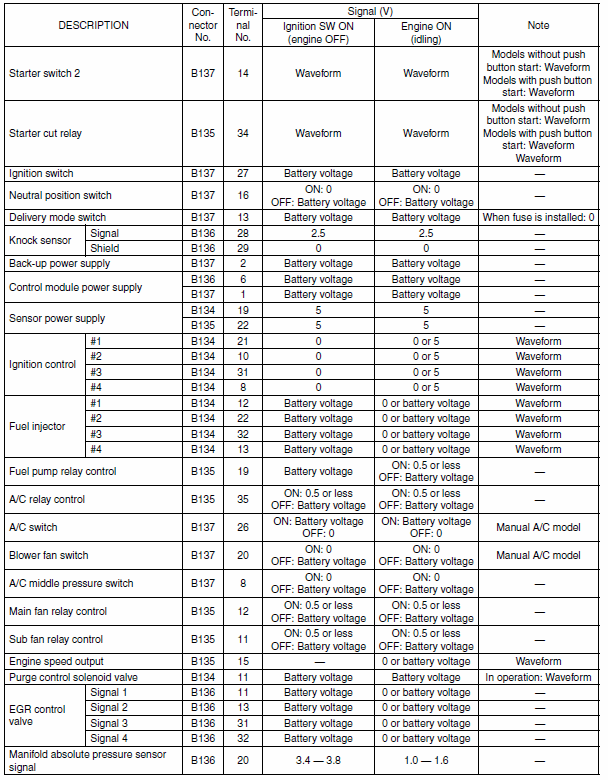

Fig 3: Engine Control Module Connector Terminal Identification (3 Of 5)
G00531244Courtesy of SUBARU OF AMERICA, INC.

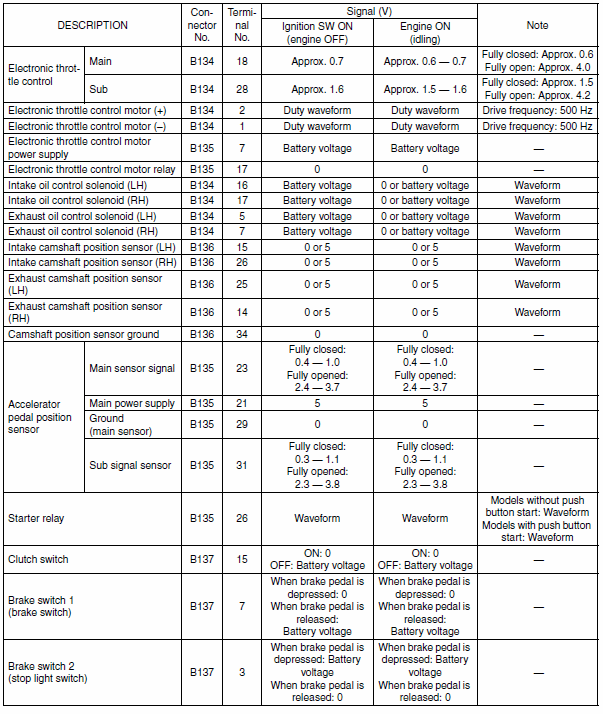

Fig 4: Engine Control Module Connector Terminal Identification (4 Of 5)
G00531245Courtesy of SUBARU OF AMERICA, INC.

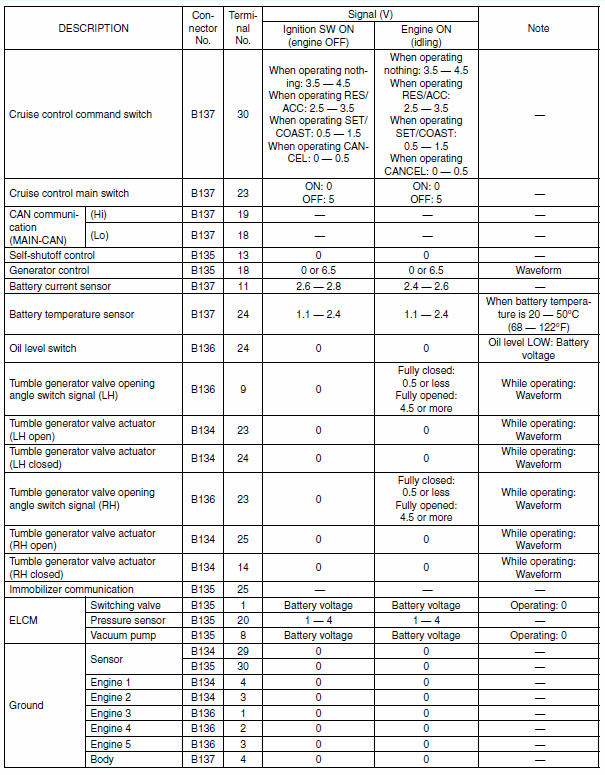

Fig 5: Engine Control Module Connector Terminal Identification (5 Of 5)
G00531246Courtesy of SUBARU OF AMERICA, INC.
NOTE:
  • Measurement should be performed after warming up the engine.
  • Place the select lever in "P" range or "N" range position.
  • Turn the A/C to OFF.
  • Turn all the accessory switches to OFF.
  • Waveforms vary depending on a measurement environment and vehicle condition.
