Display Engine Current Data

NOTE:

For detailed operation procedures, refer to "PC application help for Subaru Select Monitor".

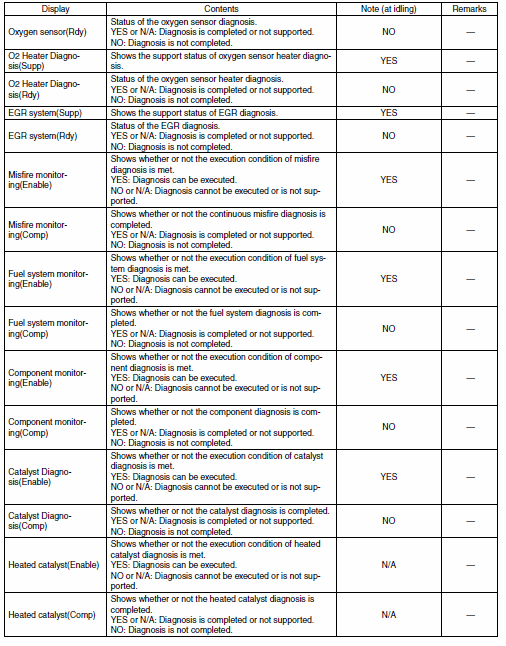

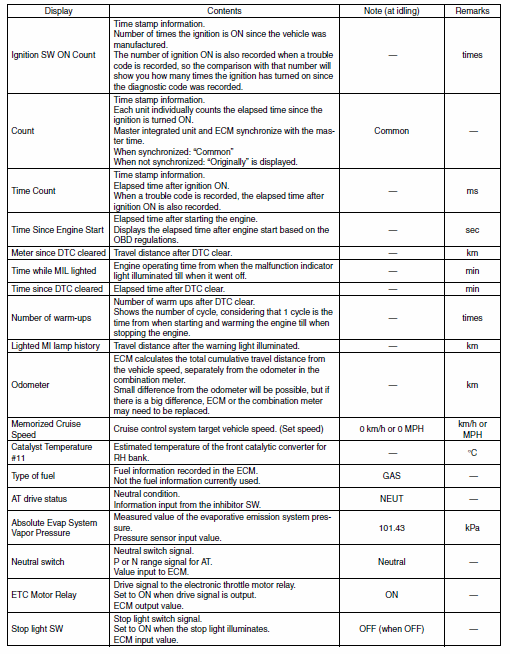

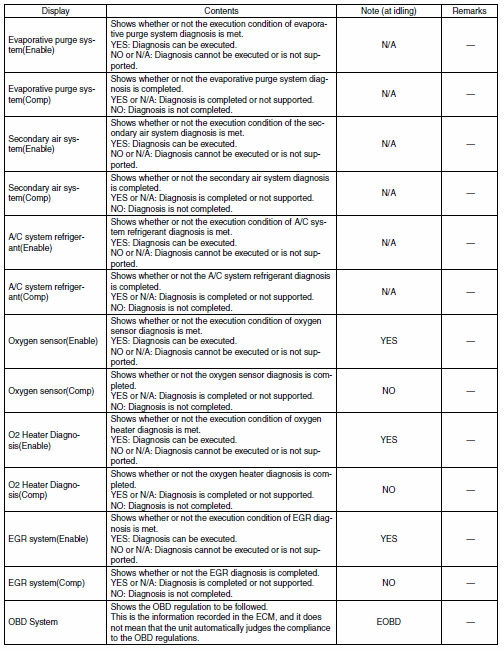

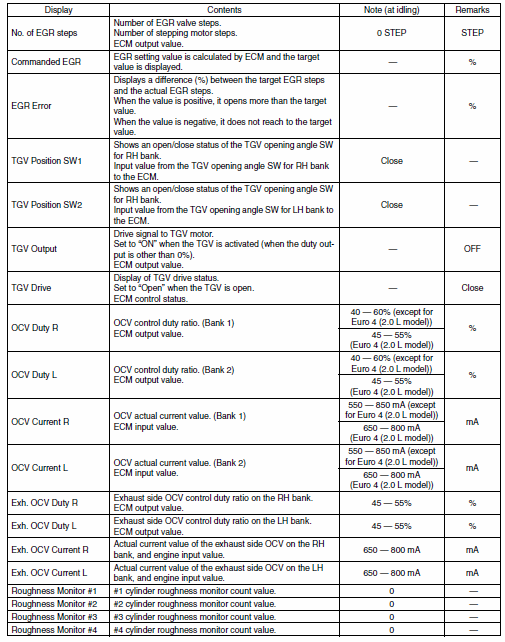

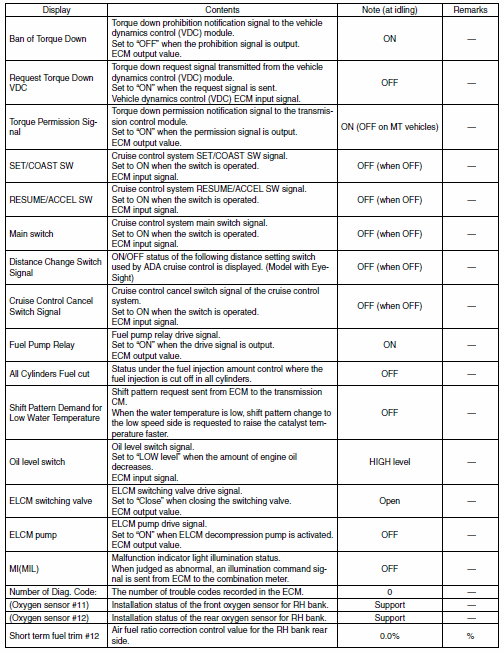

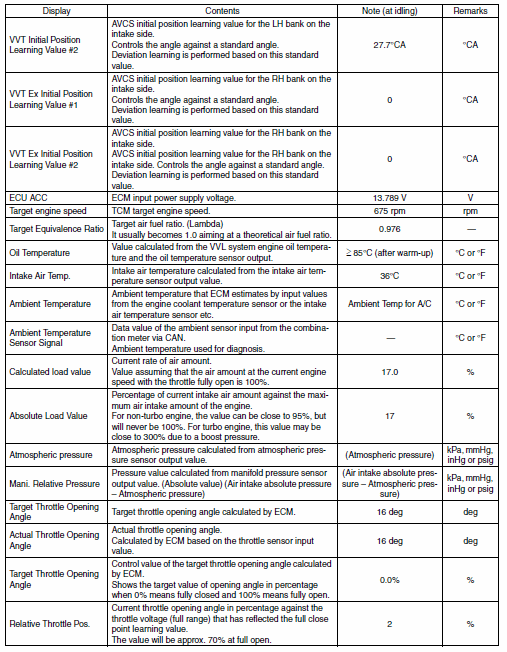

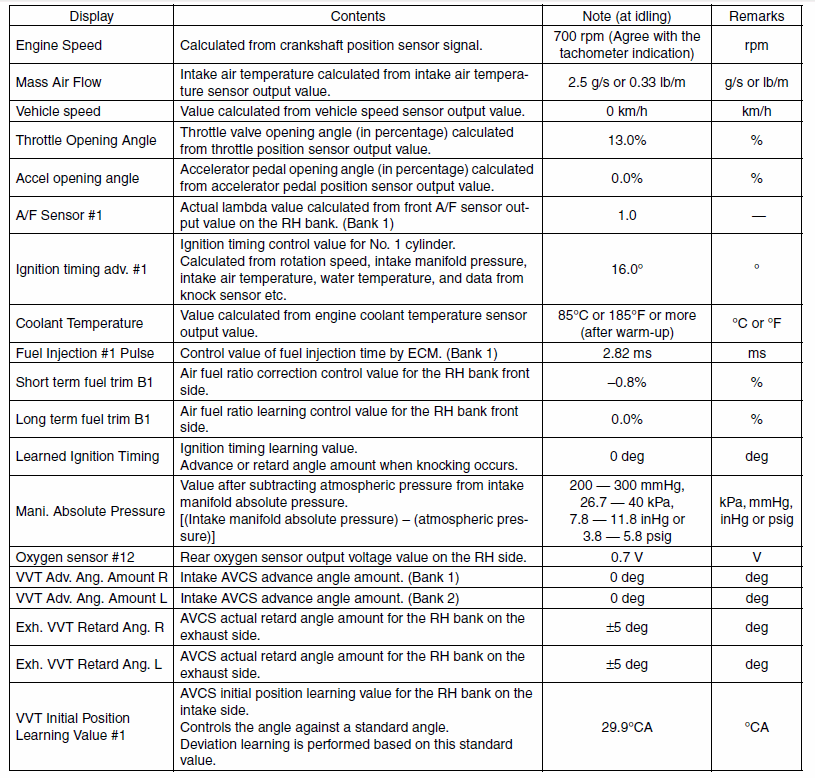

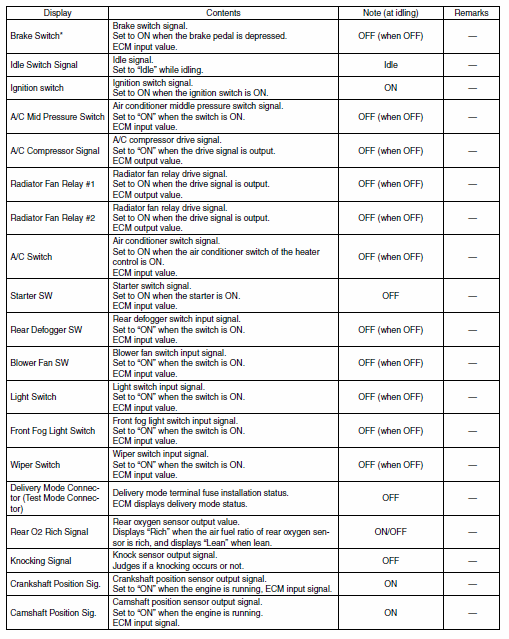

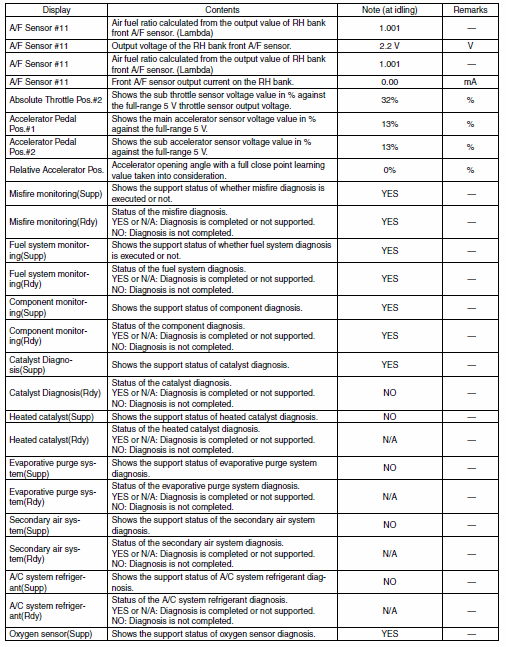

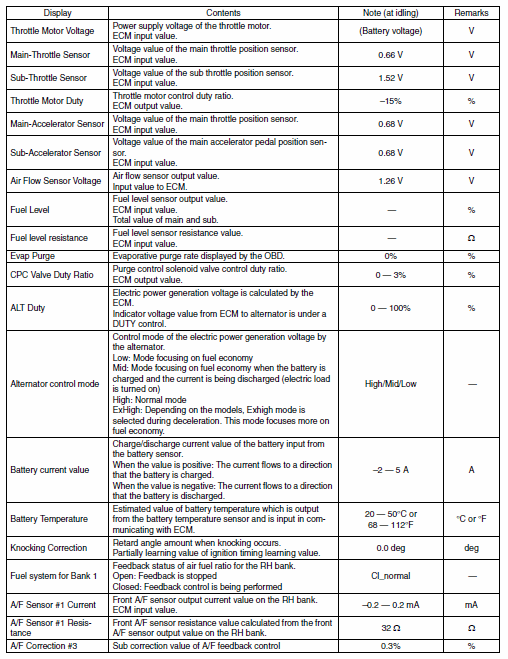

A list of the support data is shown in the following illustrations.
*: For models without cruise control, the brake switch signal does not change.
