Vehicle Stability Control (VSC) System
>>
Vehicle Stability Control System
>>
DTC C1330: FR Wheel Speed Sensor System Open Circuit/Excessive Input; DTC C1331: FL Wheel Speed Sensor System Open Circuit/Excessive Input; DTC C1464: FR Wheel Speed Sensor Signal; DTC C1465: FL Wheel Speed Sensor Signal
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

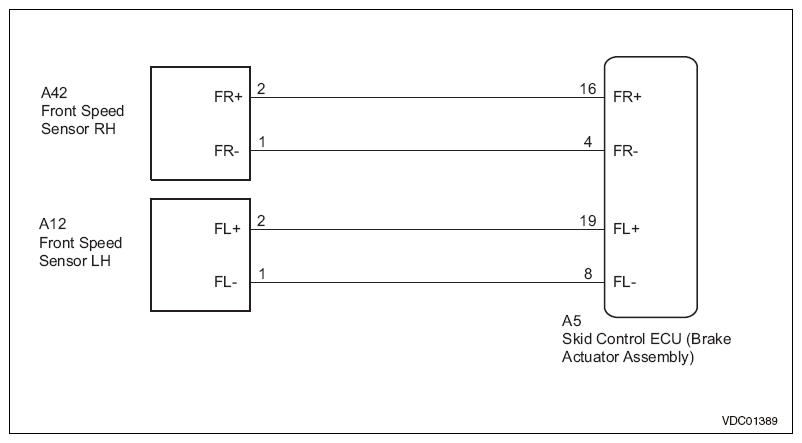

Fig 1: Front Speed Sensor Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
