Inspection steps

CAUTION: When the skid control computer (brake actuator assembly) has been replaced, make sure to perform [VDC sensor midpoint setting mode]. (Refer to WORK SUPPORT  )
  1. Check the Current Data Display (Wheel speed)
    1. Using SSM3, check [Current Data Display] of [Wheel speed] while driving straight at a speed of 10 km/h or more. (Refer to CURRENT DATA DISPLAY & SAVE  )

      SSM3 screen: [ABS/VDC System]→[Current Data Display & Save]

      ITEM DESCRIPTION

      Item name Description/display range Normal value Remarks
      Wheel speed RR Indicates the rear right wheel speed.
      Display range: 0 to 326.4km/h      		 When stopping: 0km/h
      While driving at a stable speed: There is no big change.      		 -
      Wheel speed RL Indicates the rear left wheel speed.
      Display range: 0 to 326.4km/h      		 When stopping: 0km/h
      While driving at a stable speed: There is no big change.      		 -

      Criteria: There is no big difference from the speed meter.

      NG: Go to Step  3.

      OK: Go to next step

  2. Diagnostic code list recheck
    1. Using SSM3, clear the diagnostic code. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )
    2. Perform a driving test.
    3. Using SSM3 again, check the diagnostic code output. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )

      Result

      Result Go to
      Normal A
      Error code B

      B: Go to Step 3.

      A: Malfunction reproduction test (Refer to PROCEDURES FOR MALFUNCTION PHENOMENON SIMULATION )

  3. Speed sensor installation condition check
    1. Check installation condition of the speed sensor.

      Criteria: Properly installed.

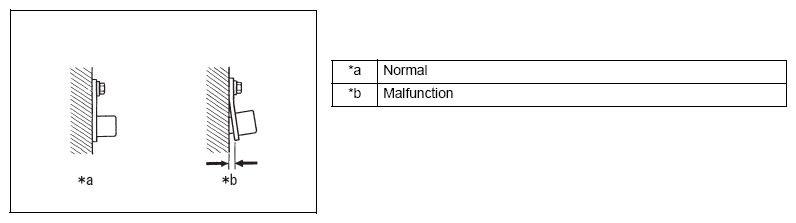

      Fig 1: Checking Speed Sensor Installation Condition
      G10215452Courtesy of SUBARU OF AMERICA, INC.

      NG: Properly install the speed sensor or replace it.

      OK: Go to next step

  4. Speed sensor check (foreign matter adhesion)
    1. Remove the speed sensor from the relevant wheel and check it for foreign matter adhesion or damage at the tip. (Refer to REMOVAL  )

      Criteria: There is no foreign particles or damage.

      CAUTION: If there is no damage in the speed sensor through this check, do not replace the speed sensor.

      NG: Clean or replace the speed sensor.

      OK: Go to next step

  5. Check wiring harness and connector (rear speed sensor brake actuator assembly)
    1. Check the connector of the skid control computer (brake actuator assembly) for a trouble such as poor engagement or disconnection.

      Criteria: No trouble

    2. Turn IG OFF and disconnect the connector A5 from the skid control computer (brake actuator assembly).
    3. Disconnect the connector, G9 or H12 for the rear speed sensor.
    4. Check the case and terminal of the connector for deformation and/or corrosion.

      Criteria: No deformation or corrosion.

    5. Measure the resistance between the terminals.

      Resistance

      RH

      RESISTANCE SPECIFICATION

      Inspection terminals Inspection conditions Standard value
      A5-17(RR+) - G9-2(RR+) Always Less than 1 Ω
      A5-17(RR+) - chassis ground Always 10 k Ωor more
      A5-29(RR-) - G9-1(RR-) Always Less than 1 Ω
      A5-29(RR-) - chassis ground Always 10 k Ωor more

      LH

      RESISTANCE SPECIFICATION

      Inspection terminals Inspection conditions Standard value
      A5-31(RL+) - H12-2(RL+) Always Less than 1 Ω
      A5-31(RL+) - chassis ground Always 10 k Ωor more
      A5-18(RL-) - H12-1(RL-) Always Less than 1 Ω
      A5-18(RL-) - chassis ground Always 10 k Ωor more

      NG: Repair or replacement of wiring harness or connector

      OK: Go to next step

  6. Skid control computer check (speed sensor power supply)
    CAUTION: With the rear speed sensor connector connected, turn the ignition switch from OFF to ON, and then check the voltage.
    1. Measure the voltage between the terminal and chassis ground.

      Voltage

      RH

      RESISTANCE SPECIFICATION

      Inspection terminals Inspection conditions Standard value
      G9-2(RR+) - chassis ground IG ON 8 to 14V

      LH

      RESISTANCE SPECIFICATION

      Inspection terminals Inspection conditions Standard value
      H12-2(RL+) - chassis ground IG ON 8 to 14V

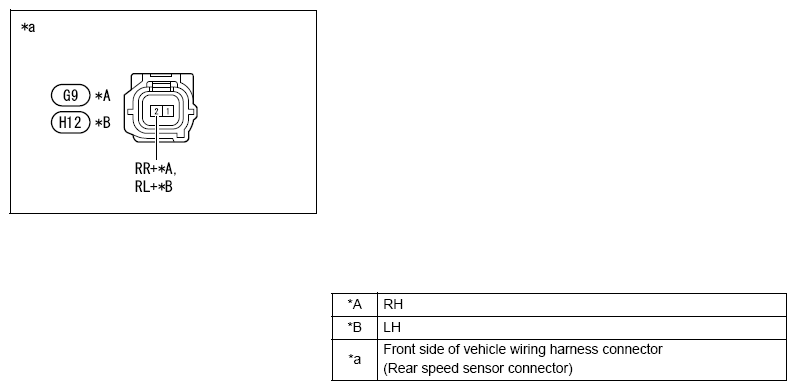

      Fig 2: Rear Speed Sensor Connector End View (G9 And H12)
      G10215453Courtesy of SUBARU OF AMERICA, INC.

      NG: Replacement of skid control computer (brake actuator assembly) (Refer to REMOVAL  )

      OK: Go to next step

  7. Diagnostic code list recheck
    1. Using SSM3, clear the diagnostic code. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )
    2. Perform a driving test.
    3. Using SSM3 again, check the diagnostic code output. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )

      Result

      Result Go to
      Normal A
      Error code B

      B: Go to Step 8.

      A: Malfunction reproduction test (Refer to PROCEDURES FOR MALFUNCTION PHENOMENON SIMULATION )

  8. Replacement of rear speed sensor
    1. Replace the relevant rear speed sensor with error code. (Refer to REMOVAL  )

      Next

  9. Diagnostic code list recheck
    1. Using SSM3, clear the diagnostic code. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )
    2. Perform a driving test.
    3. Using SSM3 again, check the diagnostic code output. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )

      Result

      Result Go to
      Normal A
      Error code B

      B: Go to Step 10.

      A: Completed

  10. Replacement of speed sensor rotor
    1. Replace the relevant speed sensor rotor with error code. (Refer to REAR AXLE HUB )
      NOTE: The speed sensor rotor is assembled in the rear axle hub. Therefore, replace the rear axle hub.

      Next

  11. Diagnostic code list recheck
    1. Using SSM3, clear the diagnostic code. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )
    2. Perform a driving test.
    3. Using SSM3 again, check the diagnostic code output. (Refer to CHECKING/CLEARING DIAGNOSTIC CODES  )

      Result

      Result Go to
      Normal A
      Error code B

      B: Replacement of skid control computer (brake actuator assembly) (Refer to REMOVAL  )

      A: Completed
