Engine Oil Pressure Switch Assembly (Fa20): Removal
- Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES
)
- Removal of air cleaner case SUB-ASSY (Refer to V-BELT (FA20)
)
- Engine oil pressure switch ASSY removal
- Disconnect the connector of engine oil pressure switch ASSY.

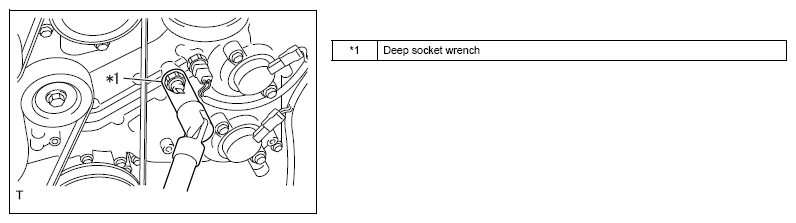

- Remove the engine oil pressure switch assembly.
CAUTION:
Catch the engine oil using cloth and the like to prevent it from splashing.
Courtesy of SUBARU OF AMERICA, INC.
