Automatic Light Control Sensor: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of the automatic light control sensor
    1. Fit in the 2 tabs, and install the automatic light control sensor.
    2. Connect the connector.

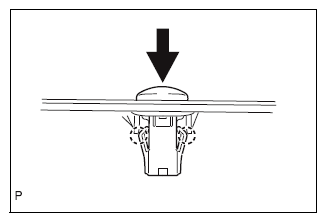

      Fig 1: Automatic Light Control Sensor Tabs
      G09492411Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of the defroster nozzle garnish NO. 1 (Refer to COOLER THERMISTOR (SUNLOAD SENSOR) )
