Anti-Theft Systems
>>
Entry Start System Start System (Keyless Start)
>>
Entry & Start System (Start Function)
>>
The Power Does Not Turn ON (Power Status Changes To ACC ON But Not To IG ON)
>>
Circuit figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit figure

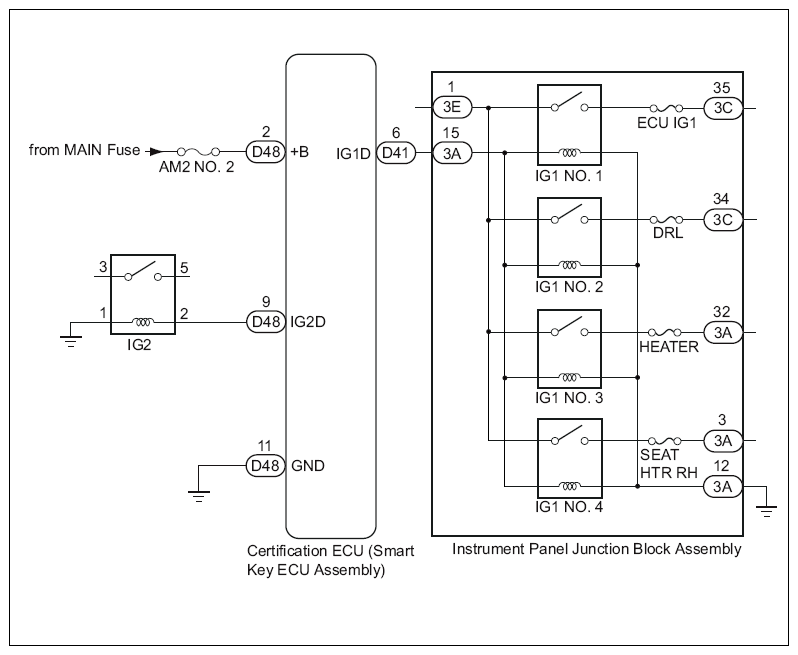

Fig 1: Certification ECU (Smart Key ECU Assembly) Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
