Exploded View

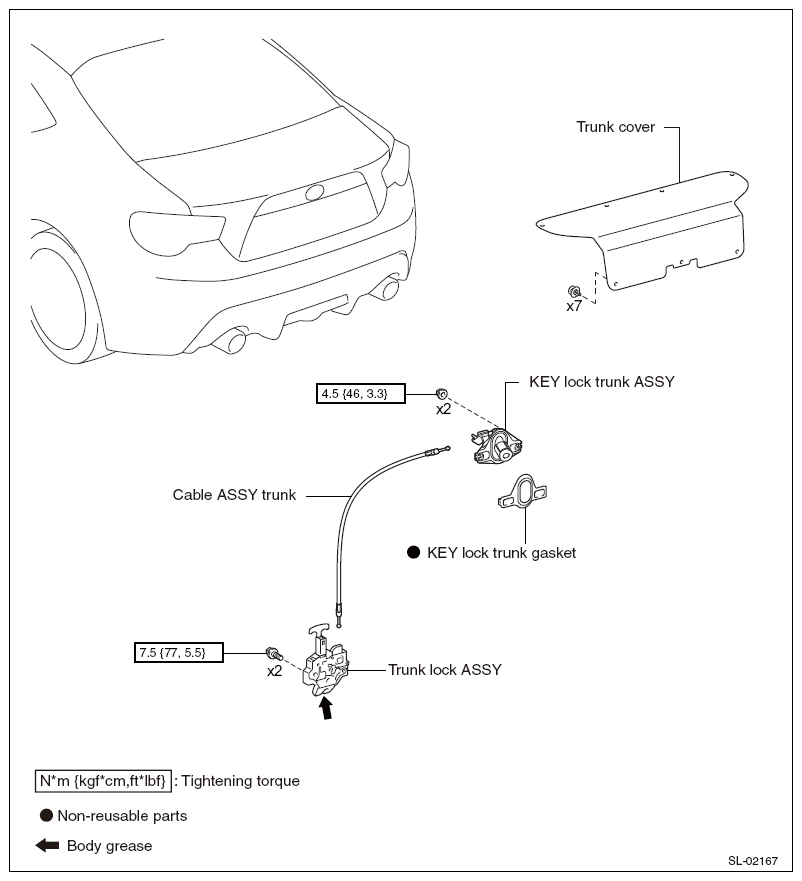

Fig 1: Exploded View Of Trunk Panel Lock Assembly With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
