Subaru
>>
2016
>>
BRZ Series.HyperBlue
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Intake System / Exhaust System
>>
Intake System (Fa20)
>>
Circuit Figure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Figure

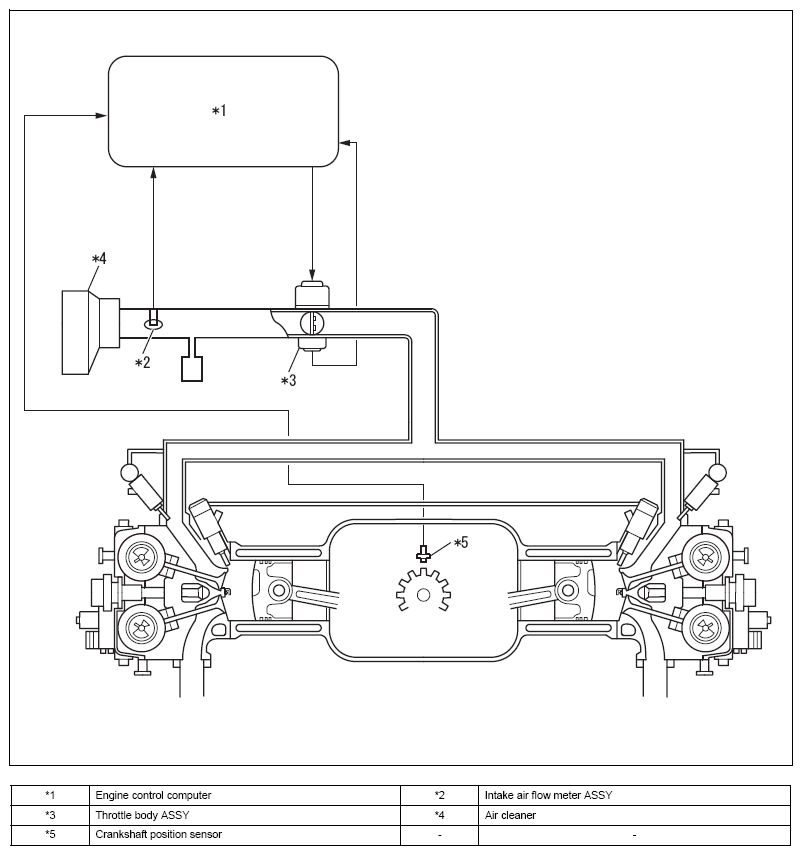

Fig 1: Intake System Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

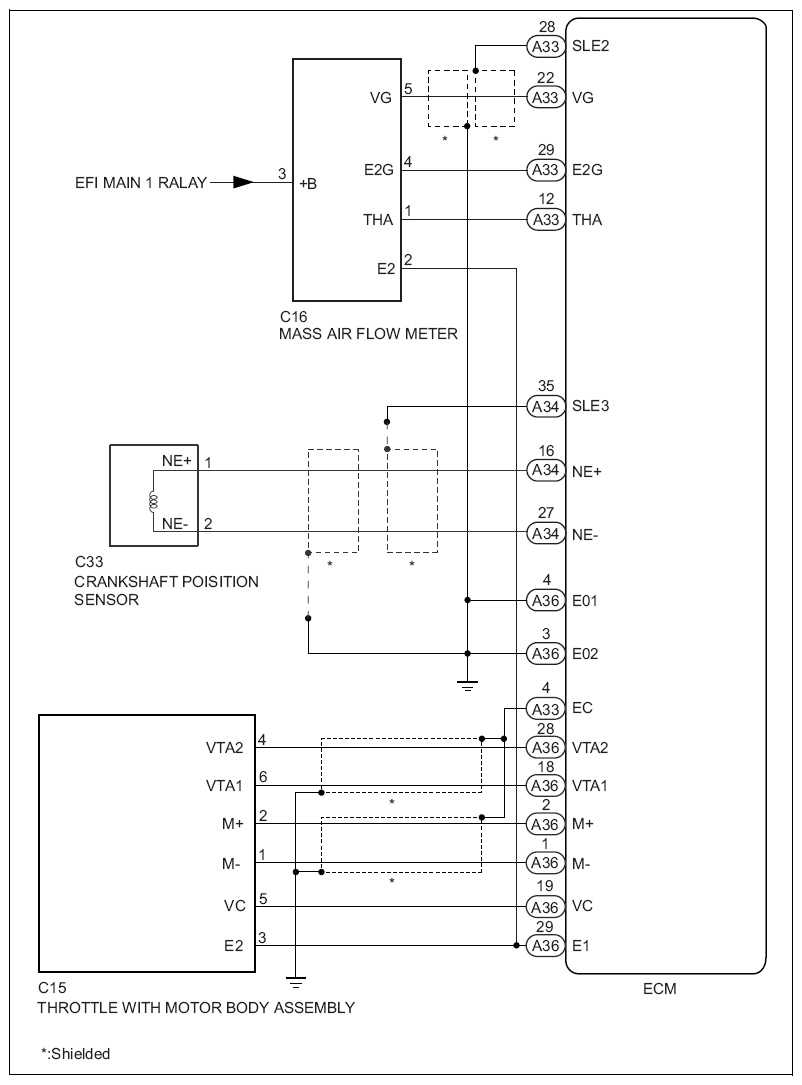

Fig 2: Intake System Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
