Crankshaft Position Sensor (Fa20): Removal

  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of crankshaft position sensor
    1. Disconnect the crankshaft position sensor connector.
    2. Remove the bolt, and remove the crankshaft position sensor.

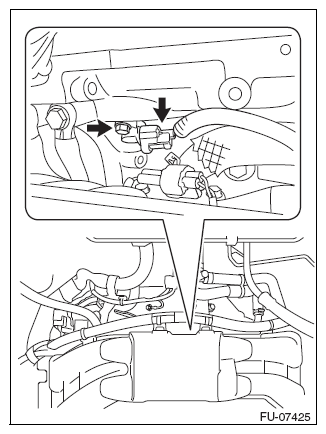

      Fig 1: Locating Crankshaft Position Sensor Bolt
      G08554015Courtesy of SUBARU OF AMERICA, INC.
