Exploded View

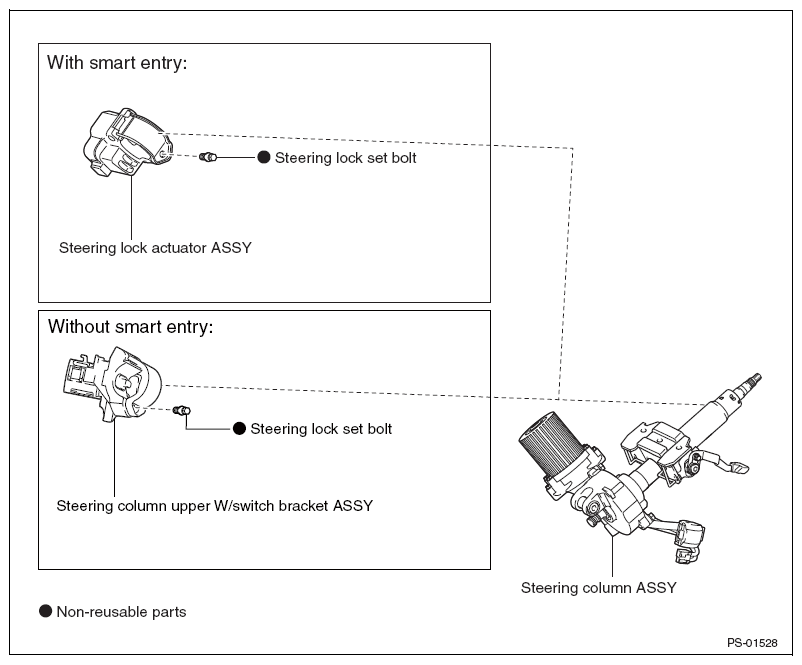

Fig 1: Exploded View Of Steering Column Assembly (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

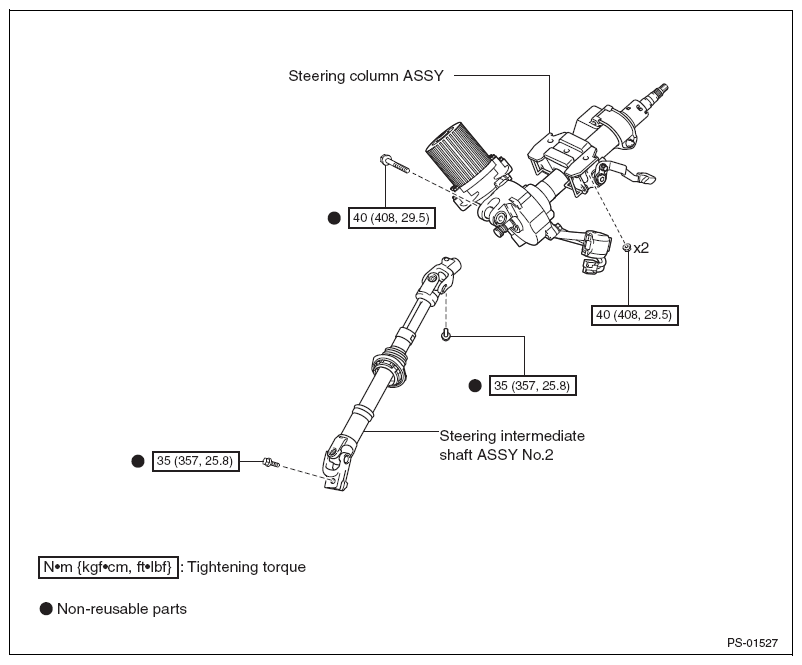

Fig 2: Exploded View Of Steering Column Assembly With Torque Specifications (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

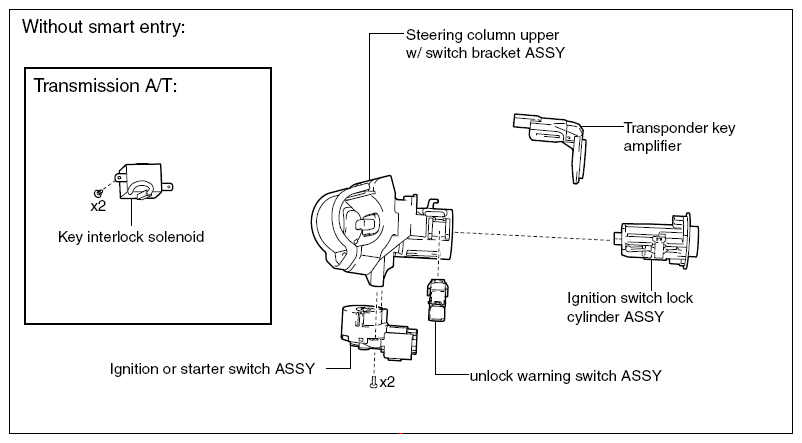

Fig 3: Exploded View Of Steering Column Assembly (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

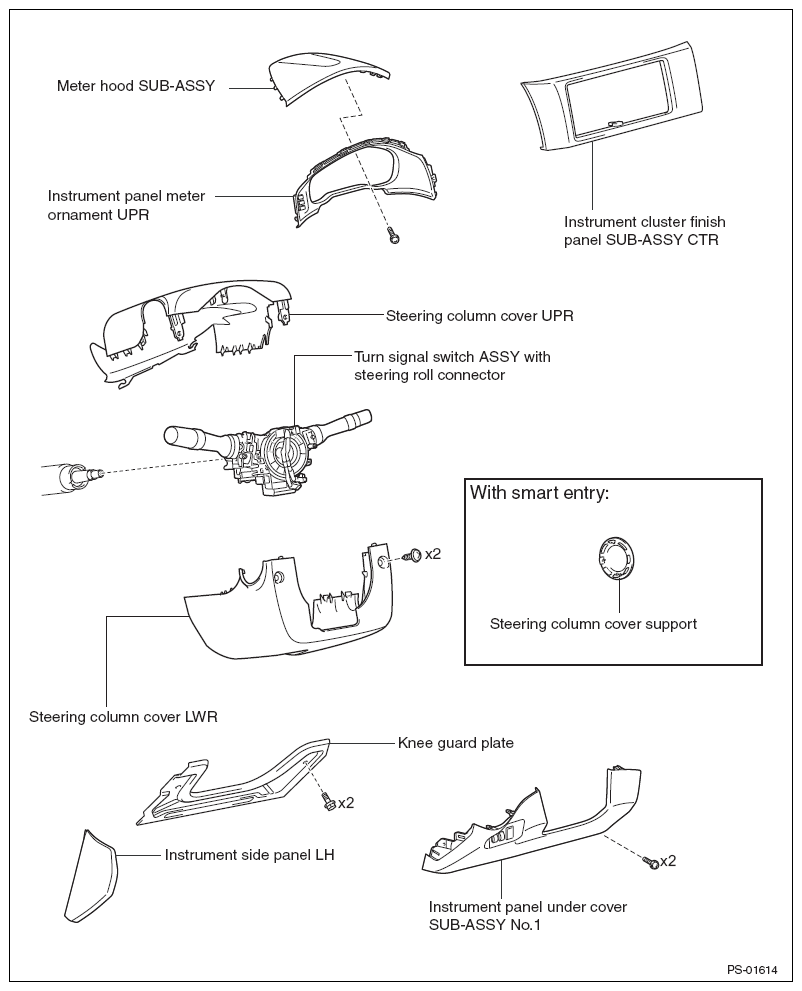

Fig 4: Exploded View Of Steering Column Assembly (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
