Steering Column Assembly: Installation

  1. Confirm that the front tires are in the straight-ahead position.
  2. Install the steering column assembly.
    1. Install the steering column assembly into the instrument panel reinforcement assembly with the two nuts and new bolts.

      Standard value: T=40N.m {408kgf.cm} {29.5ft.lbf}

      CAUTION: Be careful not to pinch the wiring harness between the body.
    2. Connect the two connectors to the power steering computer assembly.

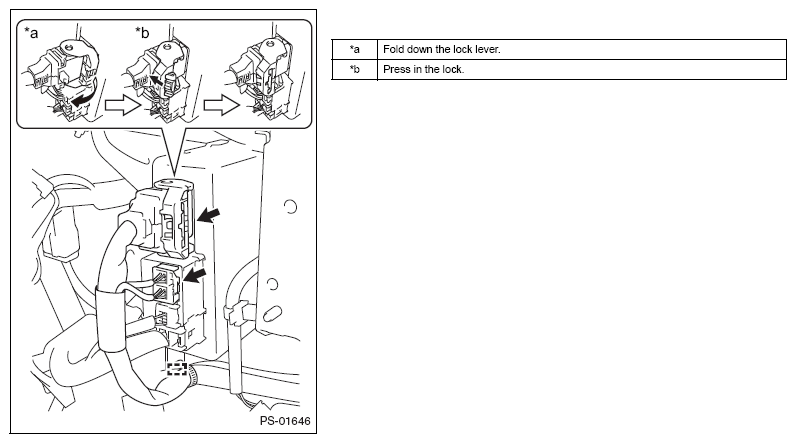

      Fig 1: Connecting Power Steering Computer Assembly Connectors
      G10215761Courtesy of SUBARU OF AMERICA, INC.
    3. Install the wiring harness clamp onto the power steering computer assembly.
  3. Installation of the steering intermediate shaft assembly No. 2
    1. Pass the steering intermediate shaft assembly No. 2 through the hole in the body from the vehicle interior side.
    2. Line up the alignment marks and connect the steering intermediate shaft assembly No. 2 to the steering gear assembly.

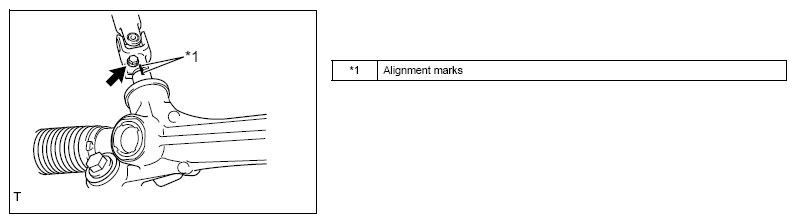

      Fig 2: Locating Alignment Marks On Steering Gear Assembly
      G10215762Courtesy of SUBARU OF AMERICA, INC.
    3. Attach a new bolt.

      Standard value: T=35N.m {357kgf.cm} {26ft.lbf}

    4. Line up the alignment marks and connect the steering intermediate shaft assembly No. 2 to the steering column assembly.

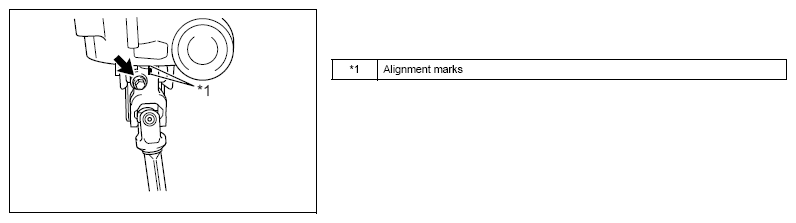

      Fig 3: Locating Alignment Marks On Steering Intermediate Shaft Assembly
      G10215763Courtesy of SUBARU OF AMERICA, INC.
    5. Attach a new bolt.

      Standard value: T=35N.m {357kgf.cm} {25.8ft.lbf}

    6. Engage the four tabs and install the dust shield to the vehicle.
  4. Installation of the turn signal switch assembly W/Steering roll connector
    1. Install the turn signal switch assembly W/Steering roll connector onto the steering column assembly when the clamp is loose.
    2. Engage the tabs on the turn signal switch assembly W/Steering roll connector with the steering column assembly and tighten the clamp.
    3. Connect each connector to the turn signal switch assembly W/Steering roll connector.
  5. Installation of the steering column cover UPR
    1. Engage the two tabs and install the steering column cover UPR.
  6. Installation of the steering column cover LWR
    1. Engage the six tabs and install the steering column cover LWR.
    2. Install the two screws into the steering column cover LWR.
  7. Installation of the steering column cover support (with smart entry)
    1. Engage the 4 tabs and install the steering column cover support.
  8. Install the instrument panel meter ornament UPR (Refer to INSTALLATION )
  9. Install the meter hood sub-assembly. (Refer to INSTALLATION )
  10. Install the instrument cluster finish panel sub-assembly CTR. (Refer to INSTALLATION )
  11. Steering roll connector centering (Refer to INSPECTION )
  12. Install the instrument panel under cover sub-assembly No. 1 (Refer to INSTALLATION )
  13. Installation of instrument side panel RH (Refer to INSTALLATION )
  14. Install the steering wheel assembly (Refer to INSTALLATION  )
  15. Connection of the battery ground terminal

    Standard value: T=6.0N.m {61kgf.cm} {4.43ft.lbf}

  16. Settings when connecting/disconnecting battery terminals (Refer to WORKING PRECAUTIONS AND NOTES )
  17. Settings during parts replacement and installation/removal (Refer to WORK SUPPORT )
  18. Inspect the airbag warning light. (Refer to AIRBAG WARNING LIGHT ILLUMINATION PATTERN )
  19. VDC sensor mid point setting (Refer to WORK SUPPORT )
