Circuit Figure

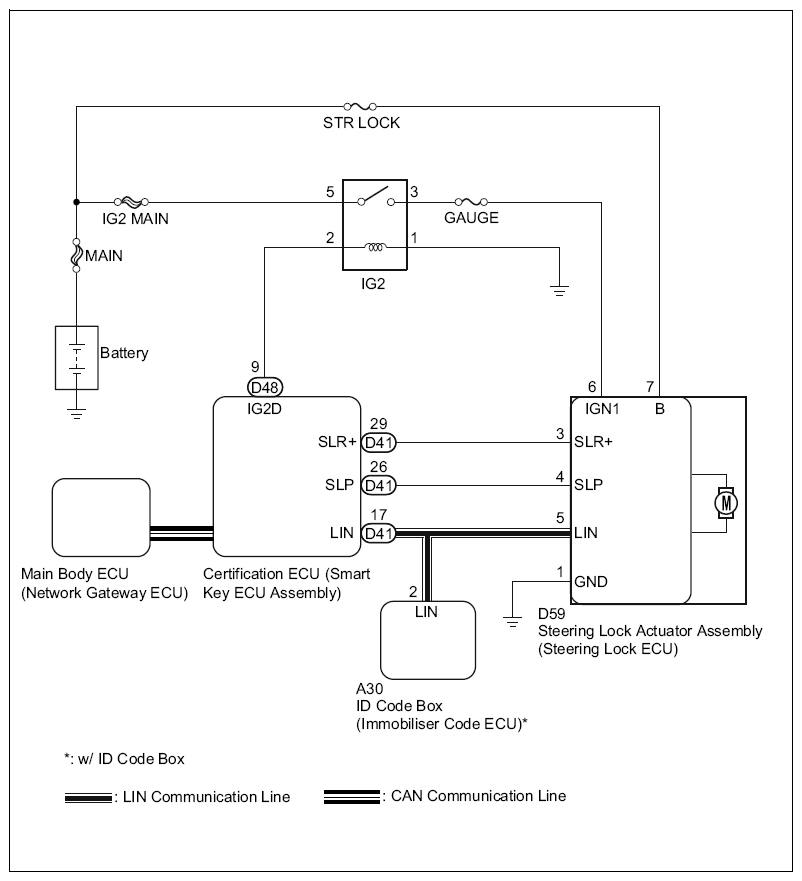

Fig 1: Steering Lock System Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
