Radar Sensor

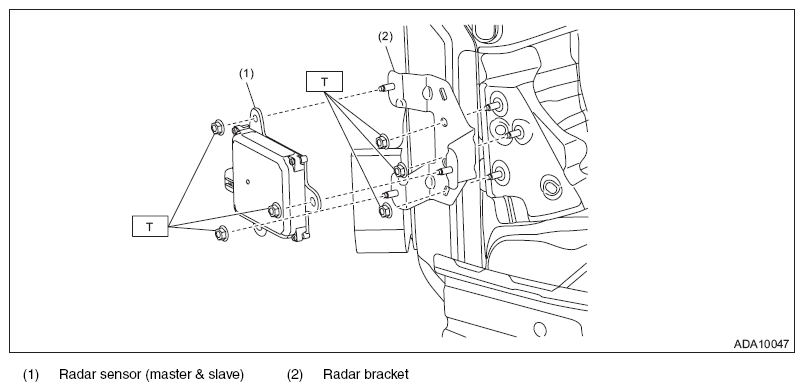

Fig 1: Identifying Radar Sensor Related Components With Torque Specification
G10321449

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
