VDC Control Module & Hydraulic Control Unit (VDCCM&H/U)

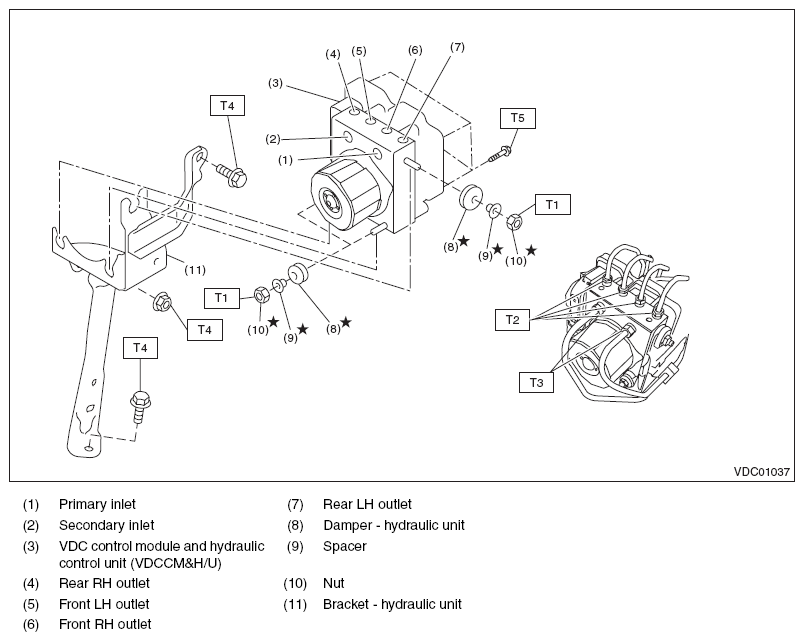

Fig 1: Exploded View Of VDC Control Module & Hydraulic Control Unit (Models Without EyeSight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 19 (1.9, 14.0)

T4: 33 (3.4, 24.3)

T5: < Ref. to  REPLACEMENT  , VDC Control Module and Hydraulic Control Unit (VDCCM&H/U). >

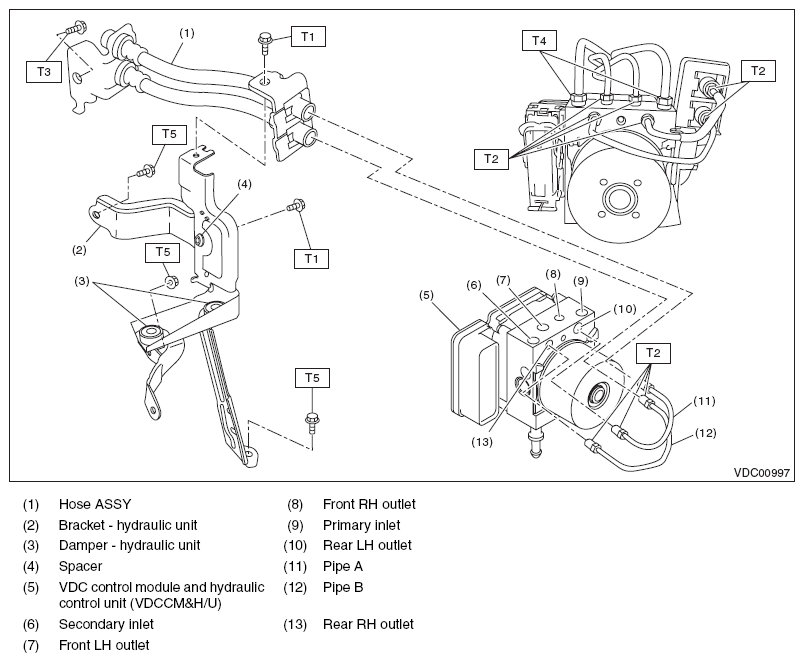

Fig 2: Exploded View Of VDC Control Module & Hydraulic Control Unit (Models With EyeSight)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

T4: 19 (1.9, 14.0)

T5: 33 (3.4, 24.3)
