VDC Control Module and Hydraulic Control Unit (VDCCM&H/U): Inspection: Notes

  1. Check the identification (a) of the VDC control module & hydraulic control unit (VDCCM&H/U).
    NOTE: For the identification, refer to "SPECIFICATION" in "General Description". < Ref. to SPECIFICATION , General Description. >
    • Models without EyeSight
      Fig 1: VDCCM&H/U Identification (Models Without EyeSight)
      G08314723Courtesy of SUBARU OF AMERICA, INC.
    • Models with EyeSight

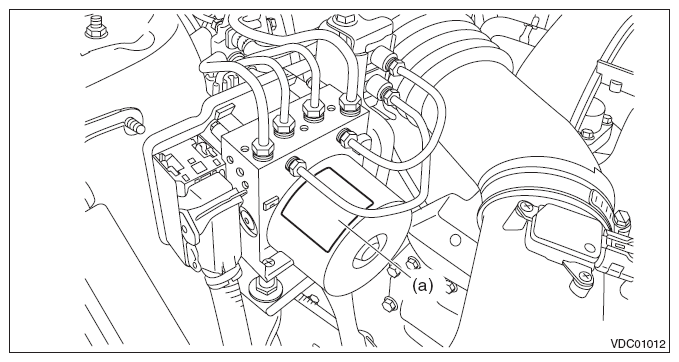

      Fig 2: VDCCM&H/U Identification (Models With EyeSight)
      G10323775Courtesy of SUBARU OF AMERICA, INC.
  2. Check the condition of connection and settlement of connector, and correct or replace if defective.
