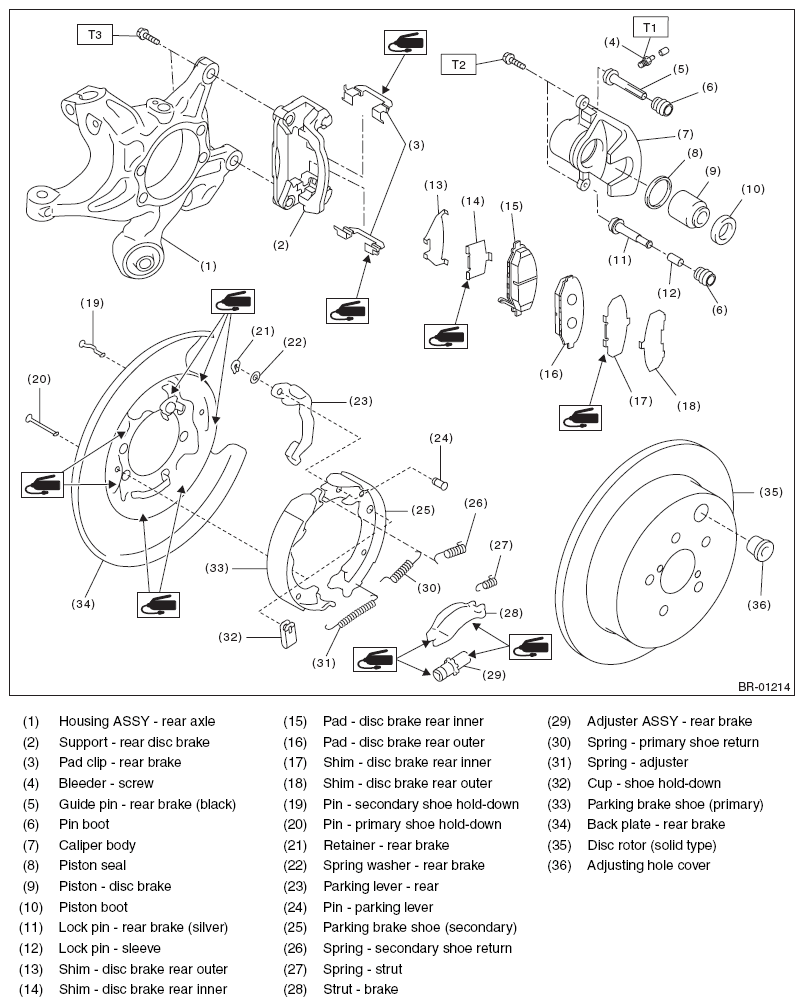

Rear Disc Brake
WARNING: This page is about a different car, the 2016 Subaru Impreza and 2016 Subaru Crosstrek. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8 (0.82, 5.9)
T2: 27 (2.75, 19.9)
T3: 66 (6.73, 48.7)
