Data Communication Module

CAUTION: After installing the center grille assembly, check that the air vent grille of the center grille assembly is inserted correctly into the air vent duct.
  1. Install the data communication module, and then install the audio bracket or navigation bracket.

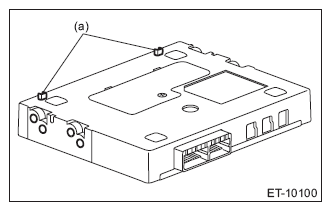

    NOTE: Align the positioning pin (a) of the data communication module with the positioning hole of the audio assembly or navigation assembly.
    Fig 1: Identifying Positioning Pin Of Data Communication Module
    G10309168Courtesy of SUBARU OF AMERICA, INC.
  2. Install the audio assembly or navigation assembly.
  3. Install the heater control assembly.
  4. Install the center grille assembly.
  5. Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  6. Perform the registration if the data communication module is replaced with a new part. < Ref. to OPERATION , Telematics System. >
  7. Check LED lighting status of overhead console or stereo camera cover assembly. < Ref. to LED ILLUMINATION STATUS LIST , CHECK, Check List for Interview. >
