Battery Sensor: Installation

Install the battery sensor, and connect the connector (B) to the battery sensor.
Tightening torque:

6 N.m (0.6 kgf-m, 4.4 ft-lb)
Attach the clip (A) to the battery holder.

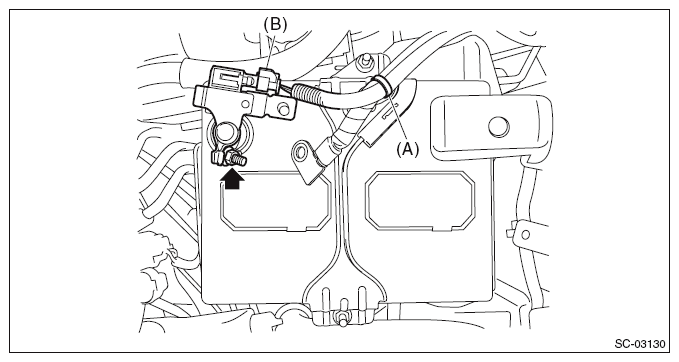

Fig 1: Locating Battery Sensor Bolt And Clip
Courtesy of SUBARU OF AMERICA, INC.
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
