Starting System & Charging System (H4DO): Generator: Disassembly

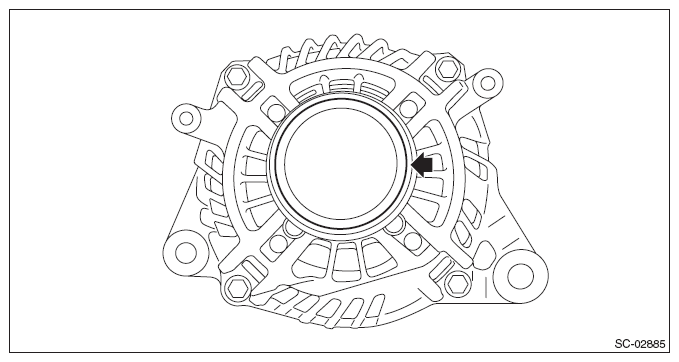

Remove the cap from the generator.

Fig 1: Locating Generator Cap
Courtesy of SUBARU OF AMERICA, INC.

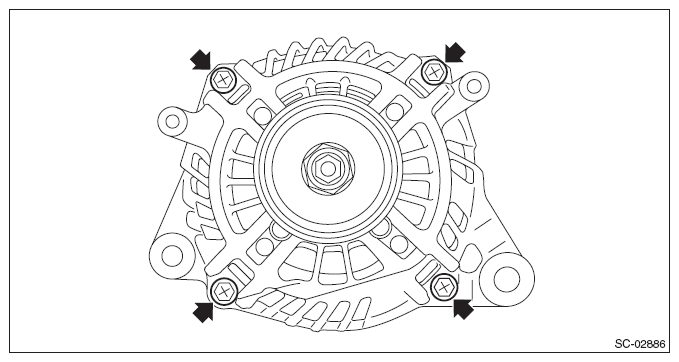

Remove four bolts.

Fig 2: Locating Generator Bolts
Courtesy of SUBARU OF AMERICA, INC.

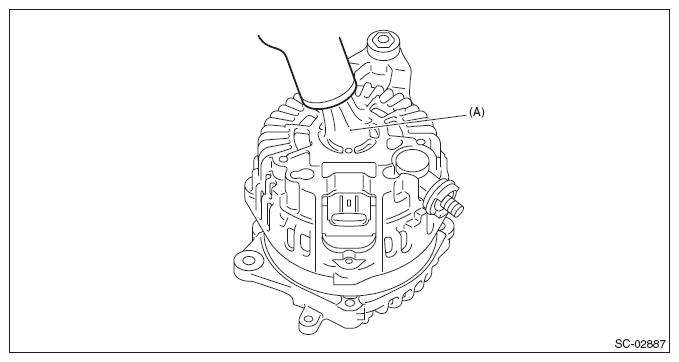

Use a drier to heat the rear cover (A) portion to 50 - 60°C (122 - 140°F).

Fig 3: Heating Rear Cover Portion Using Drier
Courtesy of SUBARU OF AMERICA, INC.

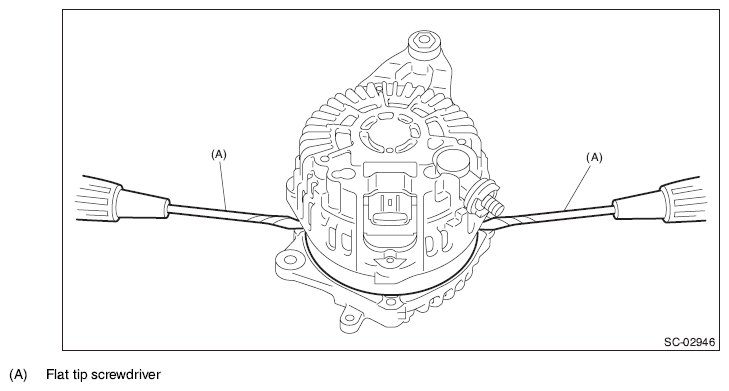

Insert a flat tip screwdriver or similar tool wrapped with protective tape into the gap between stator core and the front cover to disassemble.

Fig 4: Inserting Flat Tip Screwdriver Into Gap Between Stator Core And Front Cover
Courtesy of SUBARU OF AMERICA, INC.

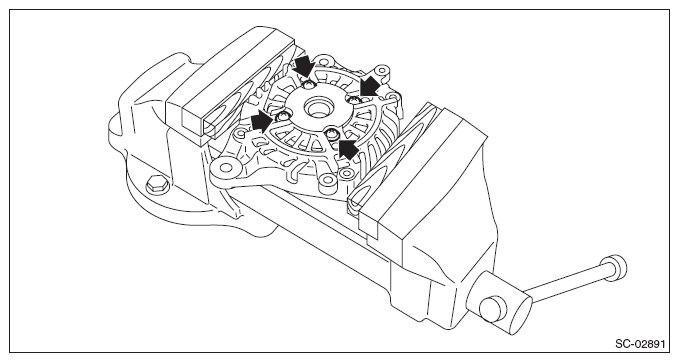

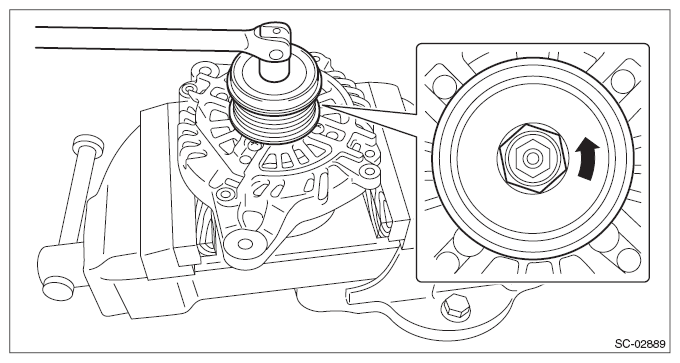

Hold the rotor on a vise and remove the pulley.
CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

Fig 5: Removing Pulley
Courtesy of SUBARU OF AMERICA, INC.

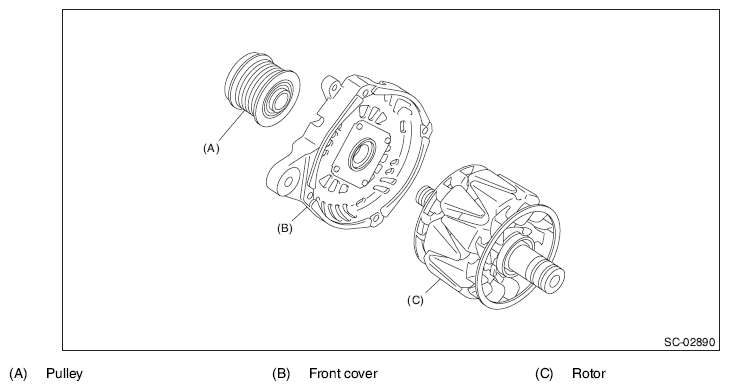

Remove the rotor from the front cover.

Fig 6: Identifying Rotor, Front Cover And Pulley
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the ball bearings.
1. Remove the bolt, and then detach the bearing retainer.

  Fig 7: Locating Bearing Retainer
  Courtesy of SUBARU OF AMERICA, INC.
2. Firmly attach an appropriate tool (such as a correct size socket wrench) to the bearing inner race.

  Fig 8: Identifying Bearing Inner Race
  Courtesy of SUBARU OF AMERICA, INC.
3. Use the press to push the ball bearings out from the front cover.

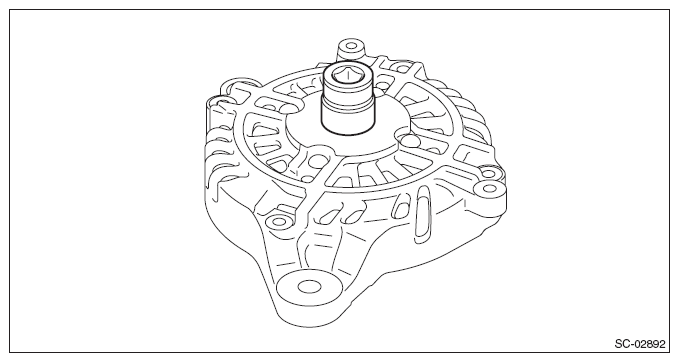

Using the bearing puller, remove the bearings from the rotor.

Fig 9: Removing Bearings From Rotor Using Bearing Puller
Courtesy of SUBARU OF AMERICA, INC.

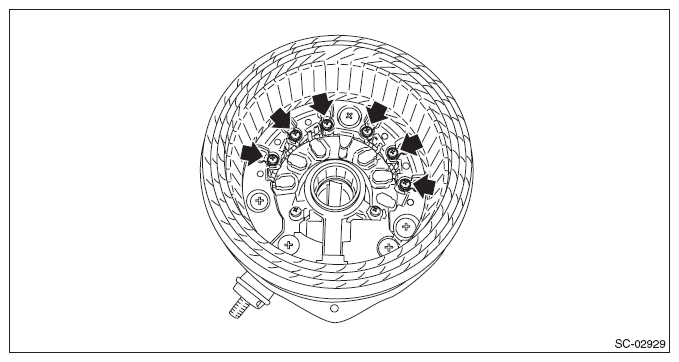

Remove six bolts which connect the rectifier and stator coil, then remove the stator coil.

Fig 10: Locating Stator Coil Bolts
Courtesy of SUBARU OF AMERICA, INC.

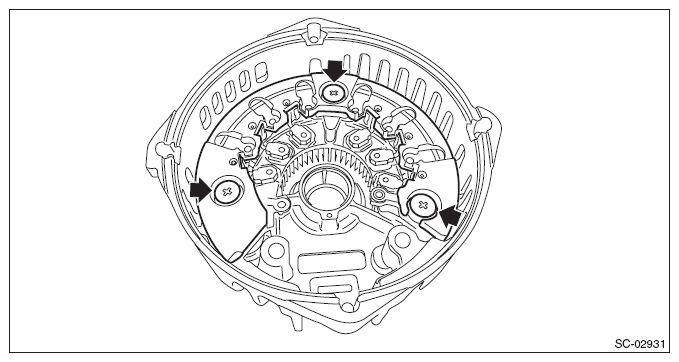

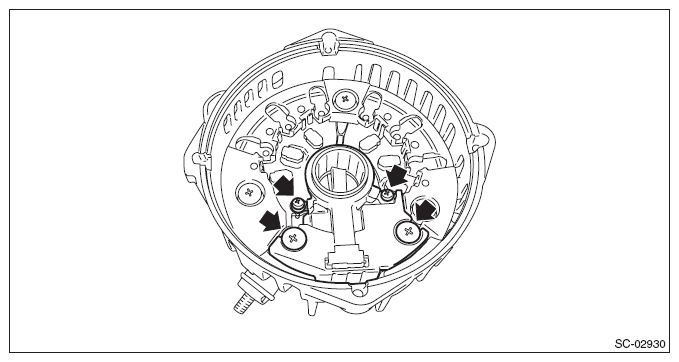

Remove four screws which secure the IC regulator to the rear cover, then remove the IC regulator.

Fig 11: Locating IC Regulator Screws
Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to remove the brush.

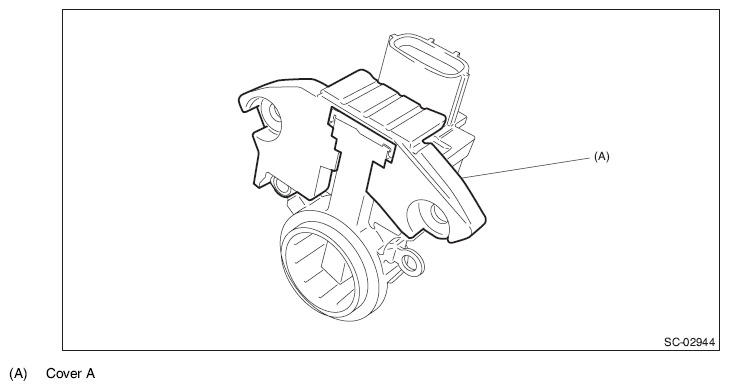

1. Remove the cover A.

  Fig 12: Identifying Cover A
  Courtesy of SUBARU OF AMERICA, INC.

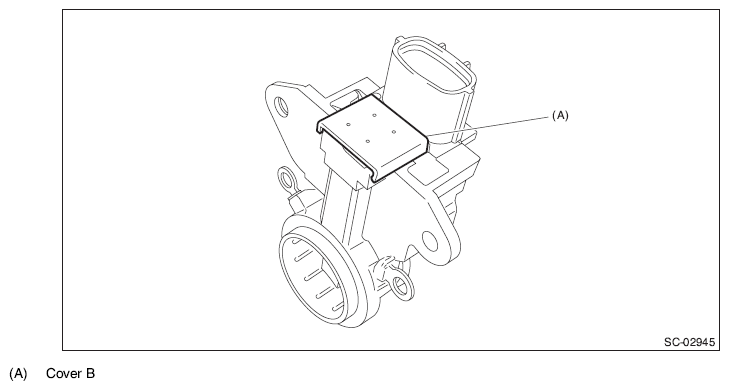

2. Remove the cover B.

  Fig 13: Identifying Cover B
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the connection and remove the brush.

  Fig 14: Removing Brush
  Courtesy of SUBARU OF AMERICA, INC.
Remove the rectifier as follows.

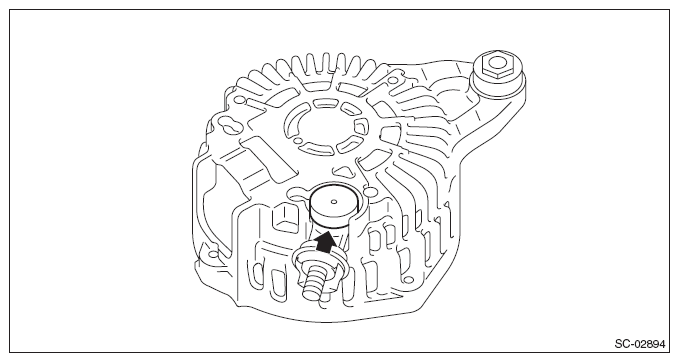

1. Remove the cover on terminal B.

  Fig 15: Locating Cover Terminal B
  Courtesy of SUBARU OF AMERICA, INC.

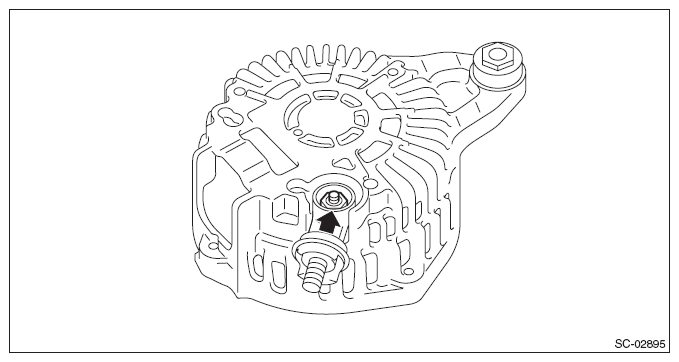

2. Remove the nut on terminal B.

  Fig 16: Locating Terminal B Nut
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolts which secure the rectifier, and remove the rectifier.

  Fig 17: Locating Rectifier Bolts
  Courtesy of SUBARU OF AMERICA, INC.
