Starting System & Charging System (H4DO): Generator: Installation

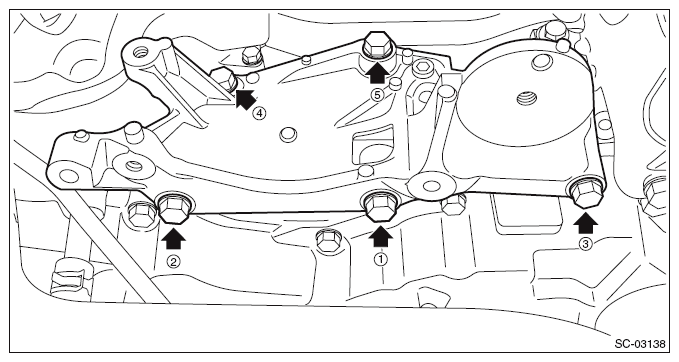

Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.
Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

Fig 1: Engine Generator Bracket Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner. < Ref. to V-BELT TENSIONER ASSEMBLY , INSTALLATION, V-belt. >

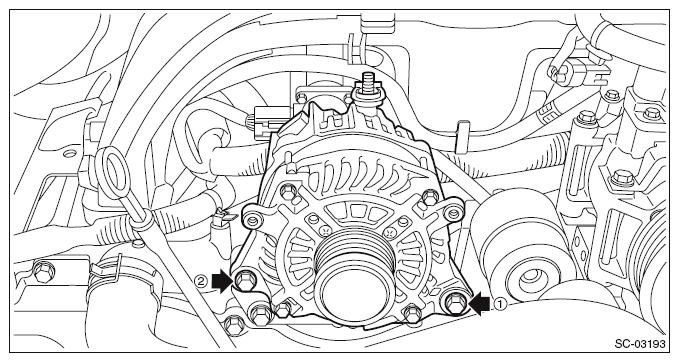

Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Fig 2: Engine Generator Bracket Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

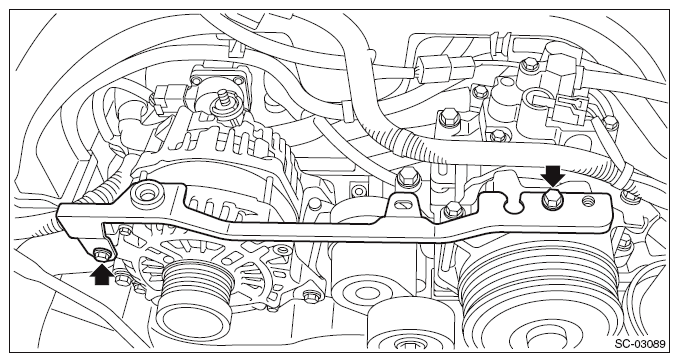

Install the V-belt cover bracket.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Locating V-Belt Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.

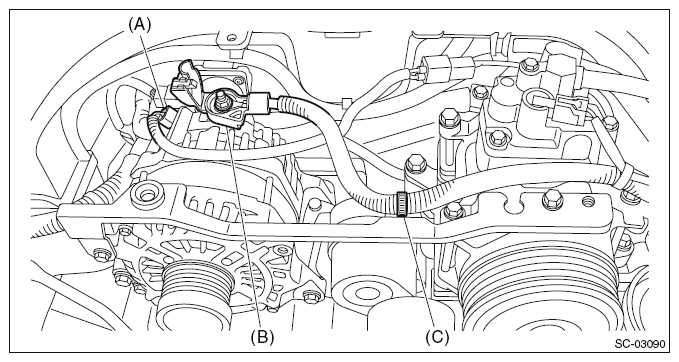

Connect the connector (A) and terminal (B) to the generator, and attach the clip (C).
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Fig 4: Identifying Generator Connector And Terminal
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. < Ref. to INSTALLATION , V-belt. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
