Engine Oil Temperature Sensor: Inspection

Check that the engine oil temperature sensor has no deformation, cracks or other damages.
Immerse the engine oil temperature sensor and a thermometer in water.
CAUTION: Take care not to allow water to get into the engine oil temperature sensor connector. Completely remove any water inside.

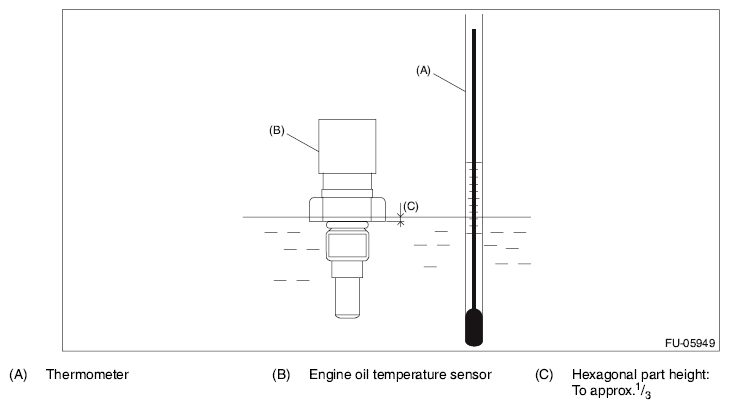

Fig 1: Checking Engine Oil Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

Raise water temperature gradually, measure the resistance between the engine oil temperature sensor terminals when the temperature is 20°C (68°F) and 80°C (176°F).

NOTE: Agitate the water for even temperature distribution.

Fig 2: Measuring Resistance Between Engine Oil Temperature Sensor Terminals

Courtesy of SUBARU OF AMERICA, INC.

Water temperature	Terminal No.	Standard
20°C (68°F)	1 and 2	Approx. 2.45^+0.14_-0.13 kΩ
80°C (176°F)	1 and 2	Approx. 0.318±0.008 kΩ
