Component Description

ELCM consists of the pressure sensor, the reference orifice (diameter of 0.02 inch), the vacuum pump which introduces the negative pressure into evaporative emission system, and the switching valve which switches the passage to introduce the negative pressure.

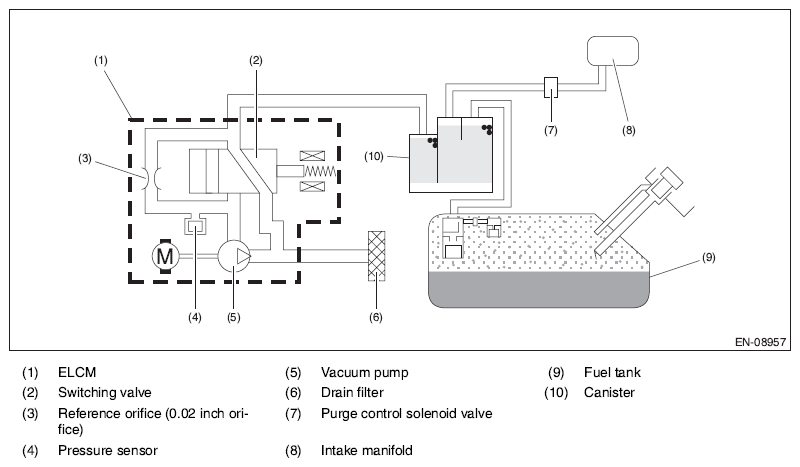

Fig 1: ELCM Pressure Sensor Operation Diagram
G10312529Courtesy of SUBARU OF AMERICA, INC.
