RELATED LINES 53 - 61 Ω (AIRBAG Control Module SYSTEM)

Wiring diagram:

CAN communication system Ref. to WIRING DIAGRAM , CAN Communication System.

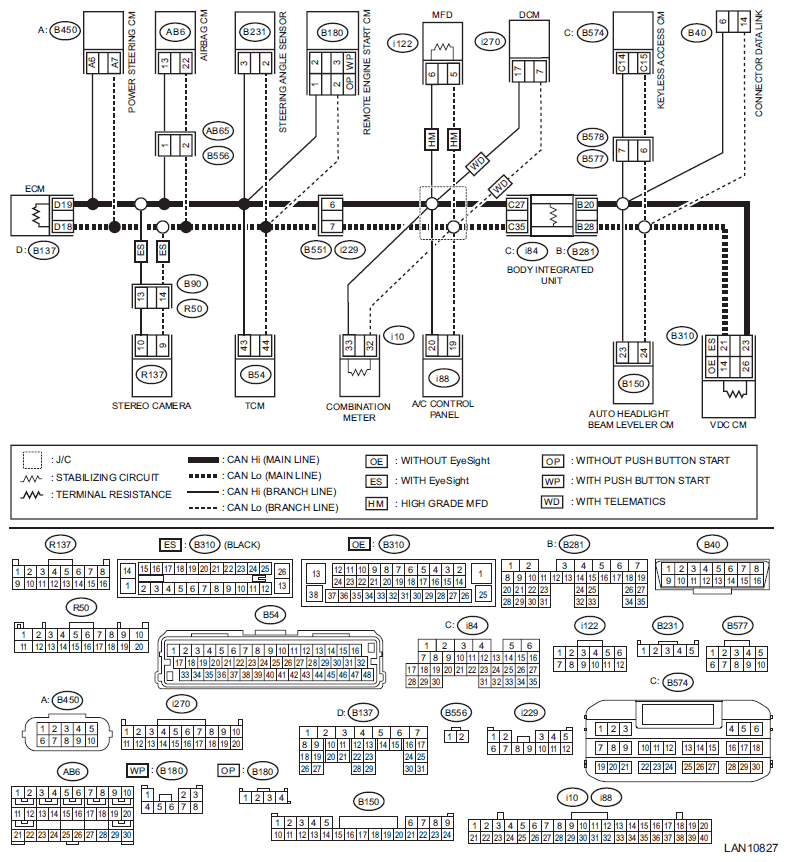

Fig 1: Can Communication System Wiring Diagram - Related Lines 53 To 61 Ohm (Airbag System And Without BSD/RCTA)

Courtesy of SUBARU OF AMERICA, INC.

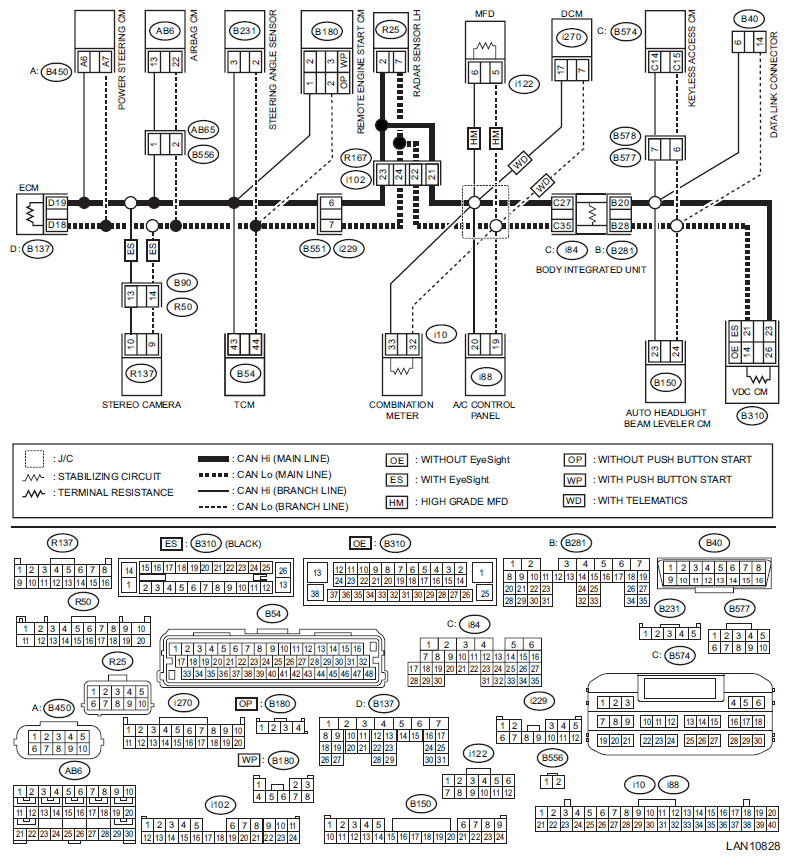

Fig 2: Can Communication System Wiring Diagram - Related Lines 53 To 61 Ohm (Airbag System And With BSD/RCTA)

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK BETWEEN RELATED LINES AND MAIN WIRING HARNESS . Disconnect the airbag Control Module connector. Using the tester, measure the resistance between terminals. Connector & terminal (AB6) No. 13 - No. 22:	Is the resistance 400 Ω or more?	Related lines between airbag Control Module and main wiring harness is open, or main wiring harness is open at two places or more.	Go to step 2 .
2 CHECK RELATED LINES . Using the tester, measure the resistance between terminals. Connector & terminal (AB6) No. 22 - (B40) No. 14: (AB6) No. 13 - (B40) No. 6:	Is the resistance 10 Ω or more?	Repair or replace the open circuit portion of airbag Control Module related lines.	Check DTC of airbag Control Module. Ref. to OPERATION , Read Diagnostic Trouble Code (DTC).
