DTC P0112: Intake Air Temperature Sensor 1 Circuit Low Bank 1: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Improper idling
Poor driving performance

CAUTION: After servicing or replacing faulty parts, perform Clear Memory Mode Ref. to OPERATION , Clear Memory Mode., and Inspection Mode Ref. to PROCEDURE , Inspection Mode..

Wiring diagram:

Engine electrical system Ref. to Engine Electrical System .

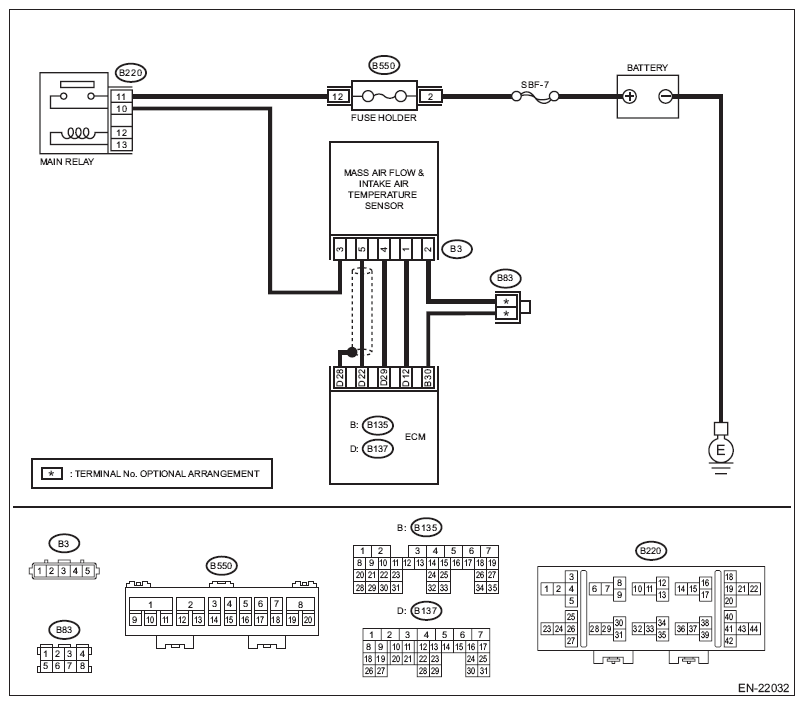

Fig 1: Intake Air Temperature Sensor 1 Circuit Low Bank 1 Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

Step	Check	Yes	No
1 CHECK CURRENT DATA. Start the engine. Read the value of «Intake Air Temp.» using the Subaru Select Monitor or a general scan tool. NOTE: Subaru Select Monitor For detailed operation procedures, refer to "Current Data Display For Engine". Ref. to Subaru Select Monitor . General scan tool For detailed operation procedures, refer to the general scan tool operation manual.	Is the value of «Intake Air Temp.» 120°C (248°F) or more?	Go to step 2.	Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again. NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
2 CHECK HARNESS BETWEEN ECM AND MASS AIR FLOW AND INTAKE AIR TEMPERATURE SENSOR CONNECTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Disconnect the connectors from the mass air flow and intake air temperature sensor. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B137) No. 12 - Chassis ground:	Is the resistance 1 MΩ or more?	Replace the mass air flow and intake air temperature sensor. Ref. to Mass Air Flow and Intake Air Temperature Sensor .	Repair the ground short circuit of harness between ECM connector and the mass air flow and intake air temperature sensor connector.
