Battery Current Sensor

NOTE: Remove the battery current sensor and battery cable as a unit.

Disconnect the battery ground cable and remove the clip from the battery rod.
Remove the battery terminal boot.
Remove the nuts, and then remove the terminal fuse assembly.

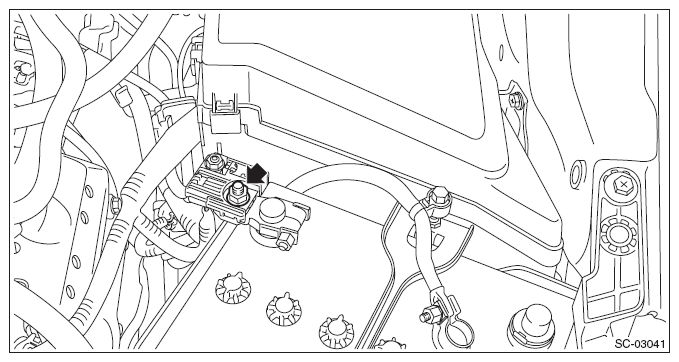

Fig 1: Locating Battery Terminal Nut
Courtesy of SUBARU OF AMERICA, INC.

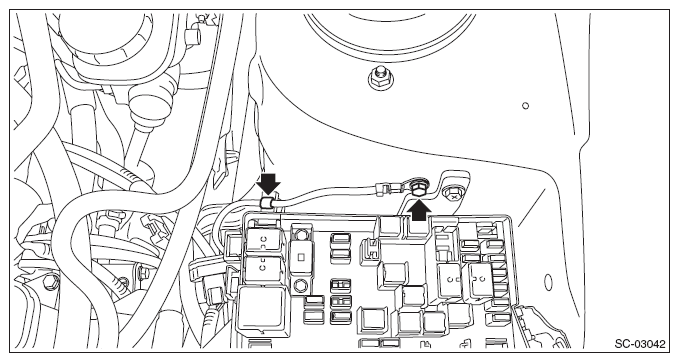

Remove the ground terminal from the vehicle and remove the harness clip.

Fig 2: Locating Ground Terminal From Vehicle
Courtesy of SUBARU OF AMERICA, INC.

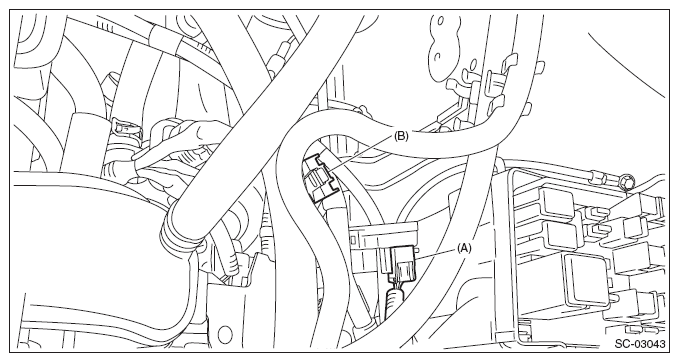

Disconnect the harness connector (A) from the battery cable.
Remove the battery cable clip (B) from the battery cable bracket.

Fig 3: Removing Battery Cable Clip From Battery Cable Bracket
Courtesy of SUBARU OF AMERICA, INC.

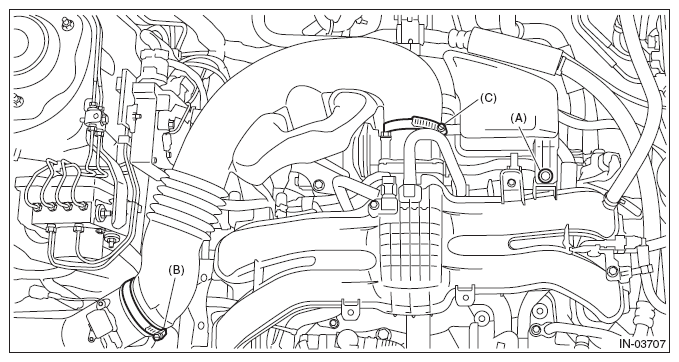

Remove the clip (A) from the air intake boot.
Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.
Loosen the clamp (C) which secures the throttle body to the air intake boot.

Fig 4: Throttle Body To Air Intake Boot Clamp
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the throttle body, and place the air intake boot aside so that it does not interfere with the work.

Fig 5: Removing Air Intake Boot From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

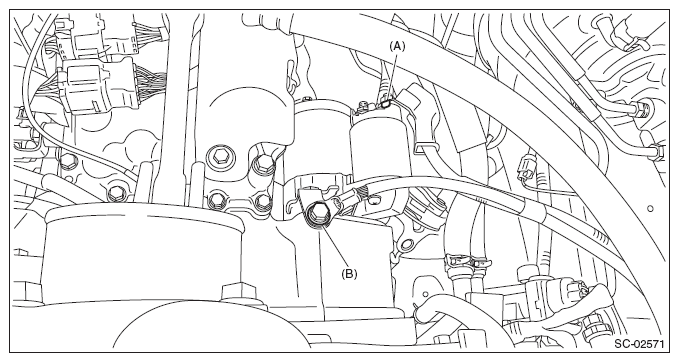

Remove the terminal B (A) from the starter.
Remove the starter ground cable (B) and remove the battery cable.

Fig 6: Removing Terminal B From Starter

Courtesy of SUBARU OF AMERICA, INC.
